DESCRIPTION

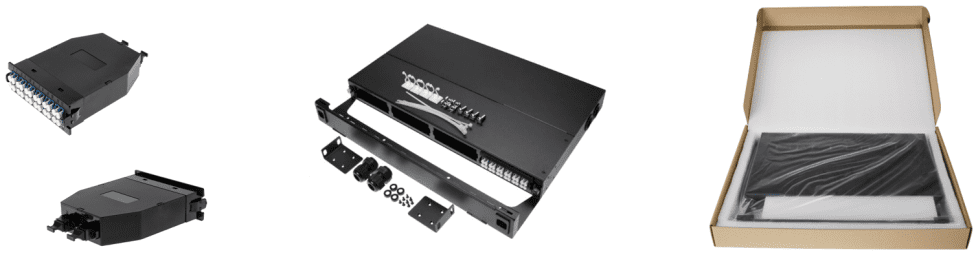

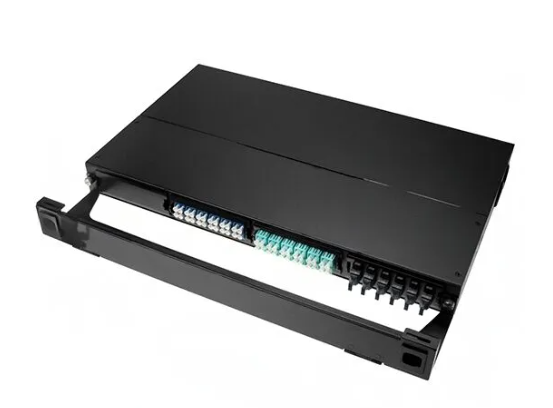

The 96 Core Slide Drawer Patch Panel 1U UHD MPO/MTP-LC 4 Cassette is a versatile solution for high-density fiber management in data centers and telecom networks. Designed for 19″ rack-mount cabinets, it accommodates up to four HD MPO/MTP-LC cassettes, providing a plug-and-play system that simplifies installation and minimizes downtime. With its compact design, the panel optimizes rack space while ensuring secure and organized fiber connections, making it ideal for modern high-performance network environments
Feature Details
- Plug-and-Play Design: Pre-terminated fiber solution reduces installation time and costs.

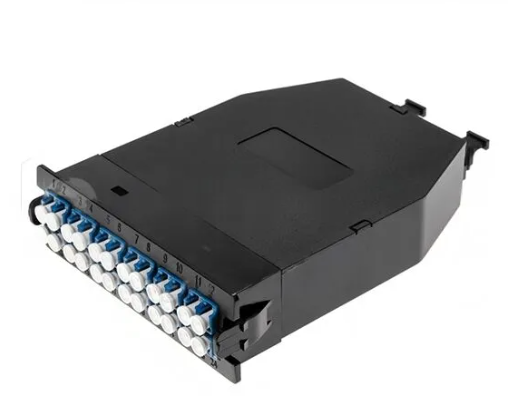

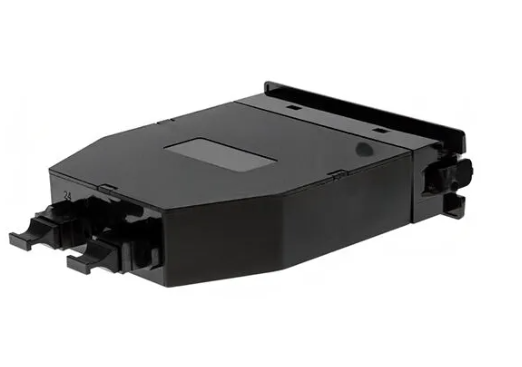

- High-Density Capacity: Holds up to 4 HD MPO/MTP-LC cassettes, supporting 96 cores in 1U.
- 19-Inch Rack Compatibility: Standard EIA 19″ rack-mountable design for universal integration.
- Flexible System Management: Enables easy handling of fiber terminations, connections, and patching.
- Compact and Efficient: Ultra-high-density design maximizes rack space and minimizes floor space usage.
- Durable Construction: Made from cold-rolled steel (CRS) for enhanced durability and reliability.
- Environmentally Friendly: Fully RoHS compliant.
Product Specifications
| Attribute | Details |
| Item | Standard EIA 19″ Rack |

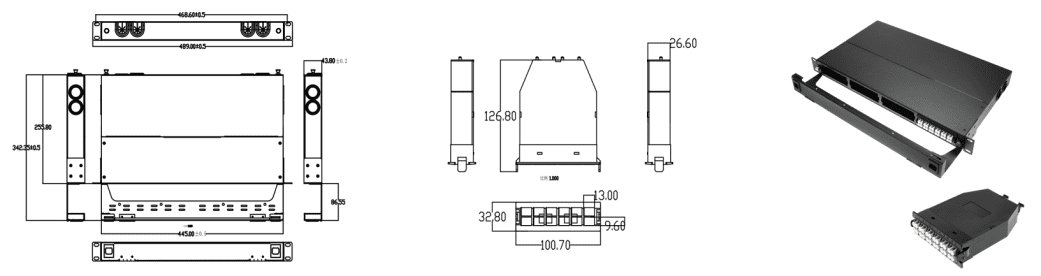

| Dimension (mm) | 482.6 × 350 × 44 |
| Material | CRS Cold-Rolled Steel |
| Max. Cores | 96 |
| Adapter Type | LC |
| Weight (kg) | 2 |
| MPO Cassette | 4 pcs |
| Max. Cores Per Cassette | 24 cores |

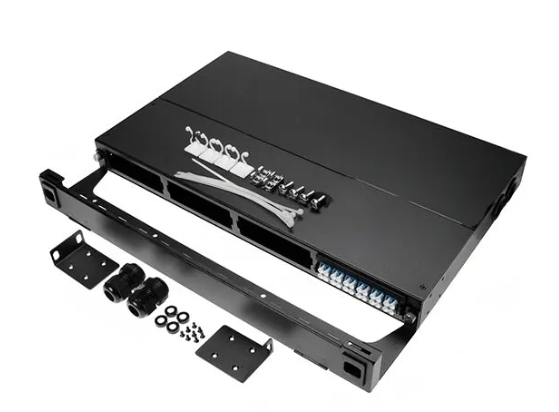

| Accessories | Cable ties (5 × 150 mm) – 6 pcs, Screws – 4 sets, Lineation rings – 4 pcs, Cable Gland – 2 × PG13.5 |
Application Details
- Telecommunications Networks: High-density fiber management for robust telecom infrastructure.
- Local Area Networks (LANs): Supports structured cabling systems for efficient connectivity.
- FTTx Deployments: Ideal for fiber-to-the-home/building implementations.
- Data Communication Networks: Maximizes rack space in data centers.
- CATV Systems: Provides reliable fiber termination and patching for cable TV networks
FAQ
1. What is the capacity of this 1U patch panel?
It supports up to 96 fiber cores through 4 MPO/MTP-LC cassettes.
2. Can this patch panel fit standard racks?
Yes, it is designed for EIA 19″ rack compatibility for easy integration.
3. Is the panel pre-terminated?
Yes, it’s a plug-and-play system that minimizes installation time.
4. What material is used for the enclosure?
It’s built from CRS cold-rolled steel, ensuring durability and rigidity.
5. Which applications is it best suited for?
Data centers, FTTx, and telecom networks requiring high-density fiber management.
6. Does it include accessories?
Yes, it comes with screws, cable ties, lineation rings, and cable glands.
7. Can this panel support 400G data center migration?
Absolutely. Its MPO/MTP breakout design supports 40G–400G network upgrades.
