DESCRIPTION

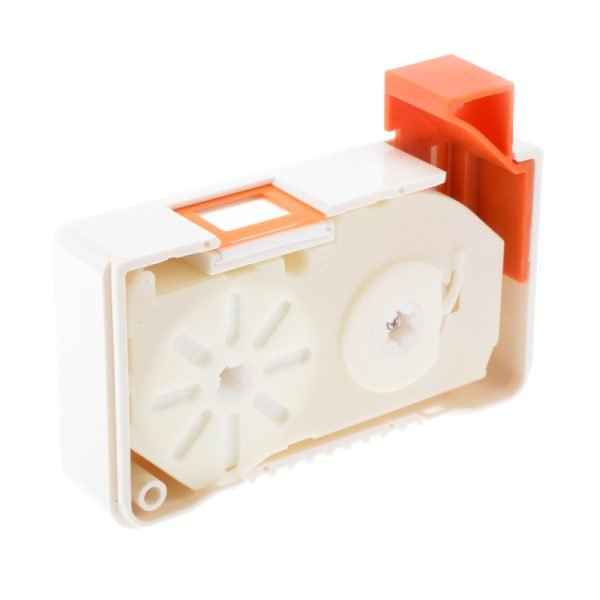

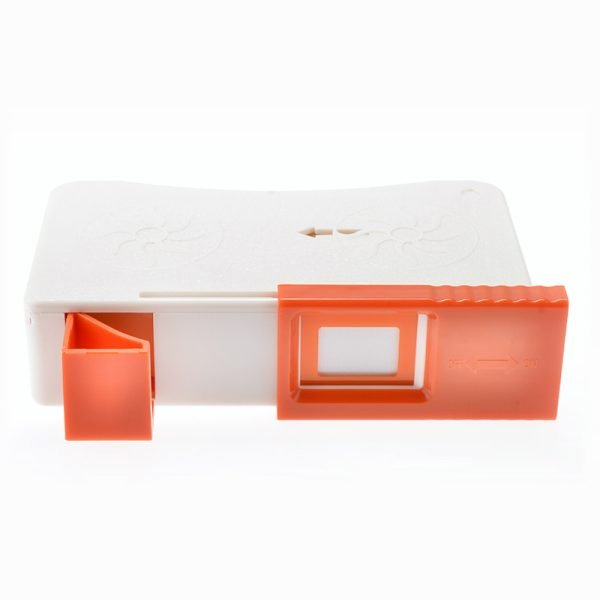

The Fiber Optic Cleaner Box (CLE-BOX) is an indispensable tool for maintaining optimal fiber optic connections. Designed for dry cleaning, it uses superfine, non-alcohol fiber material to remove contaminants from connector ferrules effectively. Its eco-friendly and easy-to-use design ensures reliable performance across 500+ cleaning cycles. Whether for SC, FC, LC, or other connectors, this tool supports high-level cleaning precision for both APC and UPC polishes.
Applications
Efficient and eco-friendly cleaning for SC, FC, LC, ST, MU, D4, DIN, and E2000 connectors.
Features
- Non-alcohol, superfine fiber cleaning tape for safe and effective cleaning.
- Dry cleaning method—no harsh chemicals or solvents.
- Durable design allows for 500+ cleaning cycles.
- Anti-static and user-friendly operation for professional environments.
- Replaceable cleaning tape for extended product life.
- Compact and portable design, ideal for fieldwork.
The Fiber Optic Cleaner Box (CLE-BOX) is an indispensable tool for maintaining optimal fiber optic connections. Designed for dry cleaning, it uses superfine, non-alcohol fiber material to remove contaminants from connector ferrules effectively. Its eco-friendly and easy-to-use design ensures reliable performance across 500+ cleaning cycles. Whether for SC, FC, LC, or other connectors, this tool supports high-level cleaning precision for both APC and UPC polishes.
Feature Details
- Superfine Cleaning Fiber:Made from a special non-alcohol material, ensuring safety and efficiency in cleaning delicate ferrules.
- Durability and Reusability:Provides over 500 cleanings, with an easy-to-replace tape system to extend usability.
- Chemical-Free Design:Utilizes a dry cleaning method to eliminate the risk of chemical residue or solvent damage.
- Compact and Lightweight:At just 115×79×32 mm, the box is portable and convenient for field or in-lab use.
- Wide Connector Compatibility:Compatible with SC, FC, LC, ST, MU, D4, DIN, and E2000 connectors, making it versatile for various applications.
- Antistatic Properties:Ensures connectors remain free of static charge during cleaning, maintaining system integrity.
Product Specifications
| Target use | SC/FC/MU/LC/ST/D4/DIN/E2000 etc. |
|---|---|
| Shell color | White |
| Polish type | APC/UPC |
| No. of cleanings | ≥ 500 times |
| Cleaning Method | Dry (cleaning cloth, without chemical or solvent.) |
| Dimensions (mm) | 115*79*32 |
Typical Use Notes
Typically selected for routine dry cleaning of standard 1.25 mm and 2.5 mm ferrule connectors where dust or oil contamination commonly affects connector mating performance.
May not be appropriate for connector formats outside the supported ferrule families or for situations where the cleaning cassette cannot achieve full endface contact due to connector geometry or handling constraints.
Application Details
- Telecom Networks: Maintains high-performance connections by removing dust and oils from connector ferrules.
- Data Centers: Ensures reliable signal transmission in high-density fiber environments.
- Fieldwork: Compact design makes it perfect for on-the-go cleaning tasks.
- FTTH Installations: Facilitates clean connections for last-mile installations.
Why Cleaner BOX for Fiber Cleaning?
- Professional-Level Cleaning: Helps keep ferrule endfaces clean for stable connector performance.
- Eco-Friendly: Dry cleaning eliminates the need for alcohol or harsh chemicals.
- Cost-Effective: Reusable with replaceable tape for long-term value.
FAQ
Q1: How many cleaning cycles does CLE-BOX support?
More than 500 dry cleans.
Q2: Does it clean both UPC and APC connectors?
Yes, compatible with angled and flat ferrules.
Q3: What makes CLE-BOX universal?
It supports both 1.25mm and 2.5mm ferrule connector types.
Q4: Can the cleaning cloth be replaced?
Yes, replaceable internal reels extend tool life.
Q5: Does it require chemicals?
No, cleaning is completely dry and residue-free.
Q6: What environments is it suitable for?
Labs, FTTH installations, and high-density data centers.
