DESCRIPTION

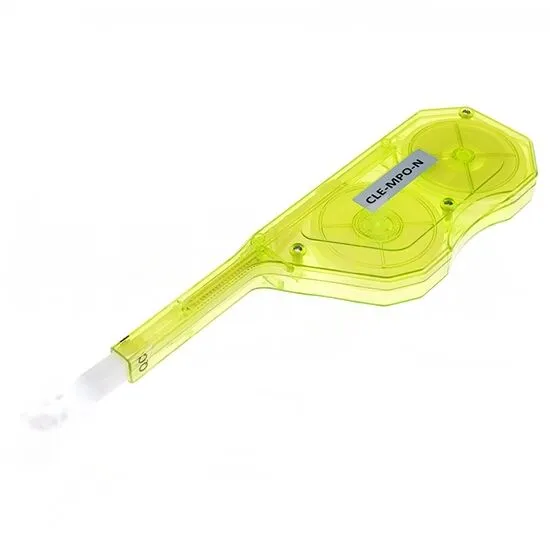

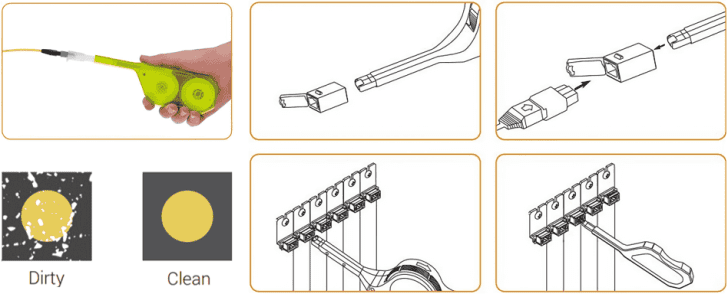

The CLE-MPO-N Cleaner Pen just twists to expose the cleaning tip, gently inserts it into the MPO/MTP connector or adapter, and rotates it a few times to remove any debris. With a dry, lint-free cleaning strand, it eliminates dust, oil, and debris that can cause insertion loss or reflection. Supporting over 600 cleanings per unit, it ensures stable performance and reliability in data centers, FTTH, and telecom environments. Its compact, push-to-clean design makes it an essential maintenance tool for any fiber professional.
FEATURE DETAILS
- Efficient and Long-Lasting Cleaning: Delivers over 600 cleanings per unit for extended service life.
- Push-Type Mechanism: A Precise push-type mechanism ensures consistent cleaning results.
- Universal MPO/MTP Compatibility: Cleans both male and female connectors and adapters.
- Compact and Portable: Its pen-style form factor makes it easy to carry and operate in dense patch panels or tight network cabinets.
PRODUCT SPECIFICATIONS
| Parameter | Details |
| Target Use | MPO/MTP |
| Shell Color | Yellow |
| Polish Type | UPC (compatible) |
| Cleaning Count | ≥ 600 times |
| Operation Type | Push-type mechanical cleaning |
| Ferrule Type | Male / Female |
| Storage Temperature | -20℃ to +60℃ |
Selection Notes
Typically selected when MPO/MTP connectors in high-density patch panels or adapters commonly require dry cleaning to reduce contamination-related insertion loss.
May not be appropriate for connector formats outside the MPO/MTP interface family or for maintenance workflows where access constraints prevent proper endface contact during cleaning.
APPLICATION DETAILS
- Data Centers: Maintain clean, low-loss connections in MPO trunk and breakout systems.
- Telecom Networks: Ensure stable signal transmission in MPO-based backbone links.
- FTTH Projects: Clean field connectors and MPO cassettes during installation.
- Enterprise Networks: Regular maintenance of high-density patch panels.
- Testing & Inspection: Pre-test connector cleaning to guarantee accurate OTDR and power meter results.
FAQ
Q1: What types of connectors can this cleaner pen be used for?
A1: It’s specifically designed for MPO/MTP connectors.
Q2: How many times can it be used?
A2: Each pen can perform more than 600 cleanings.
Q3: Is it suitable for both male and female connectors?
A3: Yes, it effectively cleans both ferrule types.
Q4: Does it require alcohol or other liquids?
A4: No, it uses a dry, lint-free cleaning mechanism.
Q5: Can it clean connectors through adapters?
A5: Yes, the tip is designed to clean endfaces inside adapters directly.
Q6: How should it be stored?
A6: Keep it capped and stored in a clean, dry environment away from dust.
