DESCRIPTION
The E2000 SM & MM Fiber Optic Connector is a premium-grade solution engineered for high-performance optical networking. Designed with a spring-loaded protective shutter, it ensures excellent eye safety and contamination resistance. Its push-pull coupling mechanism provides quick, secure connections, reducing installation time and improving mechanical stability.
Whether you’re managing a data center, a backbone infrastructure, or a telecom environment, this connector delivers exceptional insertion and return loss, making it a go-to solution for modern fiber applications. Available in SM and MM configurations, and fully compliant with IEC, TIA/EIA, and Telcordia GR-326.
Feature Details
- Shutter Design: Prevents accidental laser exposure and dust ingress.
- High Precision Alignment: Ensures minimal signal loss and excellent repeatability.
- Robust Build: Durable for over 1000 mating cycles, designed for field longevity.
- Color-Coded Housing: Industry-standard colors to distinguish between SM/MM and PC/APC easily.
- Flexible Cable Compatibility: Fits various jacket sizes for easy integration.
Product Specifications
| Item | Specification |
| Connector Type | E2000 |
| Fiber Type | Single-mode (G.652D, G.657A1) / Multimode (OM1/OM2/OM3/OM4) |
| Ferrule Material | Zirconia Ceramic |
| Polish Type | PC / APC |
| Insertion Loss | ≤ 0.2 dB (typical) |
| Return Loss | ≥ 50 dB (PC), ≥ 60 dB (APC) |
| Operating Temperature | -40°C to +75°C |
| Durability | ≥ 1000 mating cycles |
| Boot Options | 0.9mm / 2.0mm / 3.0mm |

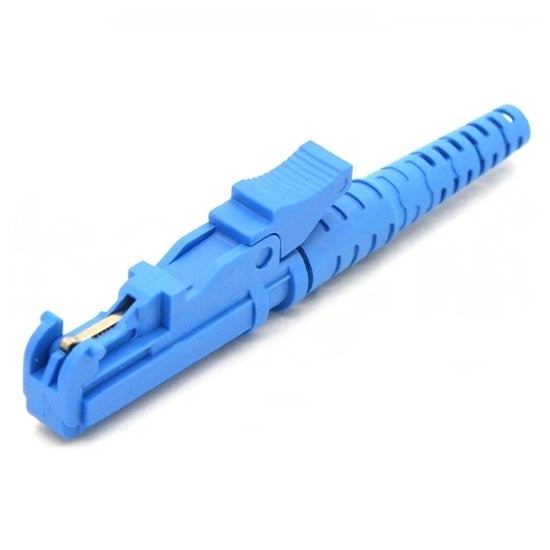

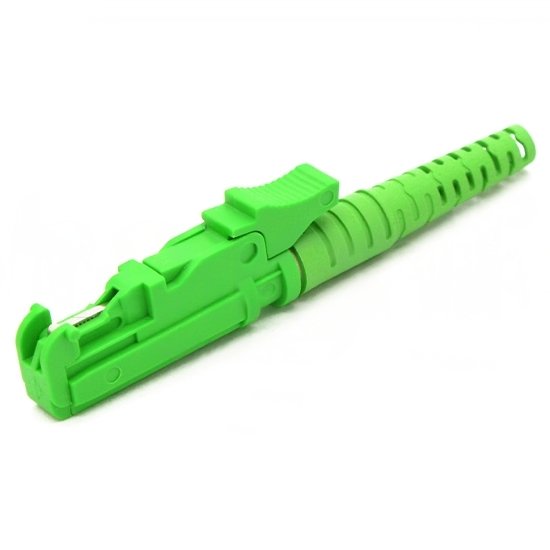

| Color Coding | Blue (SM PC), Green (SM APC), Beige (MM) |
Application Details
- Telecommunication and FTTx Networks: Provides secure and low-loss connections for high-speed data transmission.
- Data Center Infrastructure: Ensures reliable connections in high-density fiber distribution frames.
- Medical Imaging and Industrial Control: Supports accurate and interference-free optical signal delivery.
- Laboratory and Equipment Interfacing: Provides repeatable, low-loss connectivity for optical test instruments.
FAQ
Q1: What is the advantage of the E2000 connector compared to standard connectors?
The E2000 connector features a spring-loaded shutter that enhances eye safety and protects against dust, making it suitable for high-performance and safety-critical applications.
Q2: What is the difference between PC and APC versions?
PC connectors offer good insertion loss performance, while APC connectors provide higher return loss, ideal for systems sensitive to back reflection.
Q3: Is this connector suitable for both single mode and multimode fibers?
Yes, the E2000 connector is available for both single mode and multimode fiber types.
Q4: How durable is the E2000 connector?
It is designed for at least 1000 mating cycles while maintaining stable optical performance.
Q5: What standards does this connector comply with?
The connector complies with IEC standards and Telcordia GR-326 requirements for telecom-grade reliability.
Q6: Can different cable diameters be supported?
Yes, multiple boot options are available to accommodate various cable jacket diameters.
Q7: Is color coding available for easy identification?
Standard color coding is used to distinguish fiber type and polish, simplifying installation and maintenance.
