DESCRIPTION

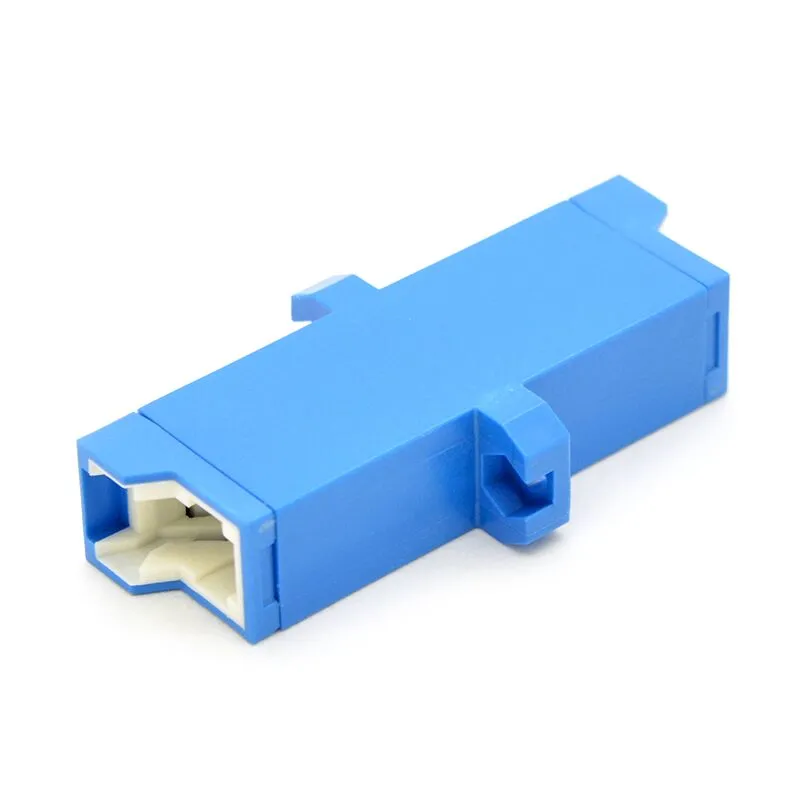

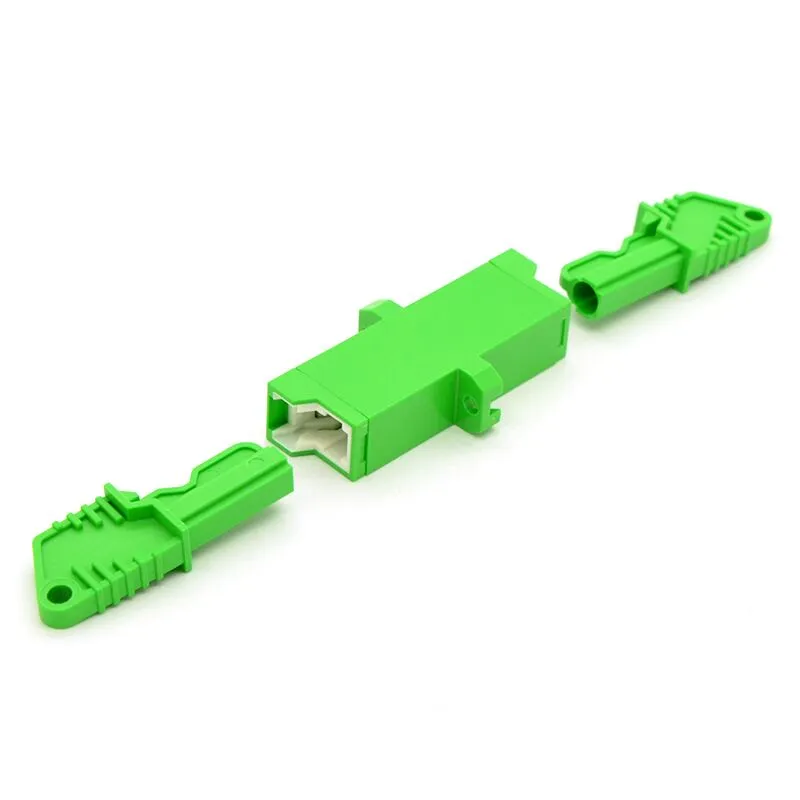

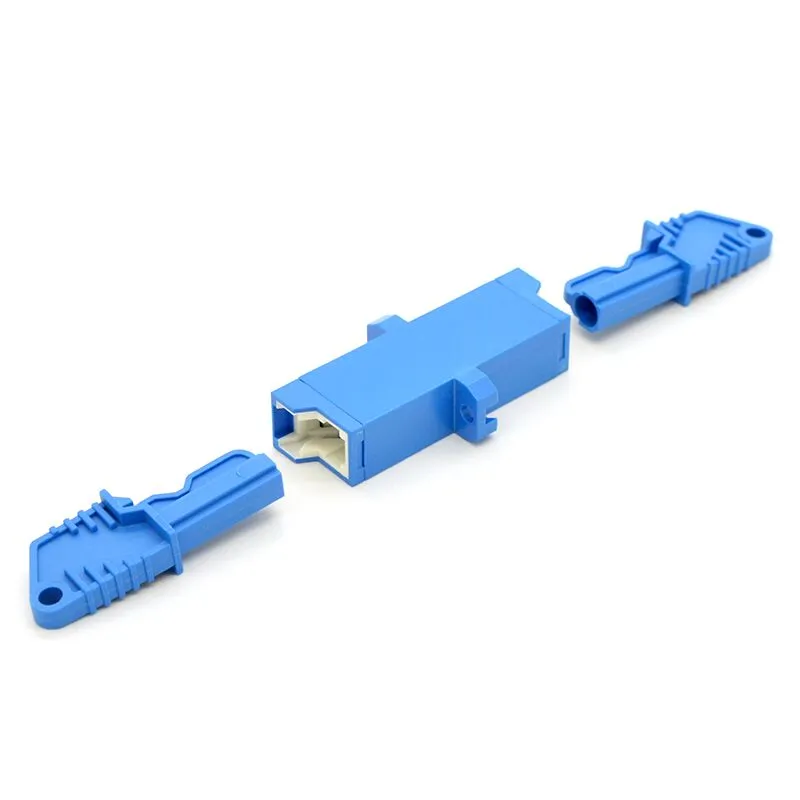

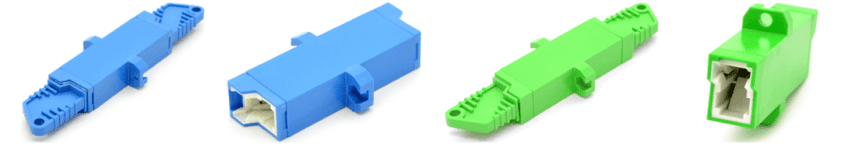

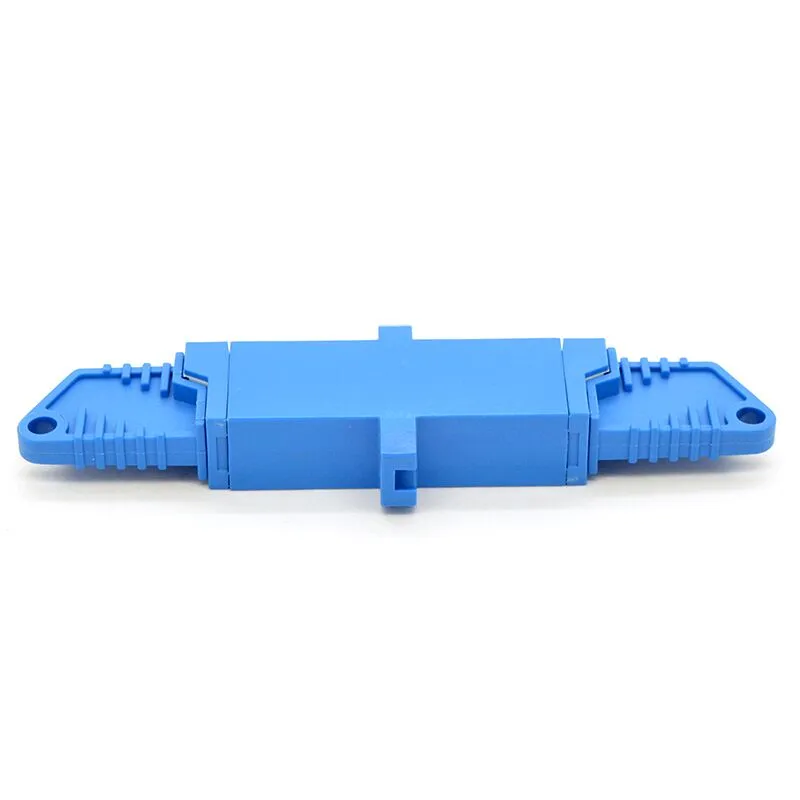

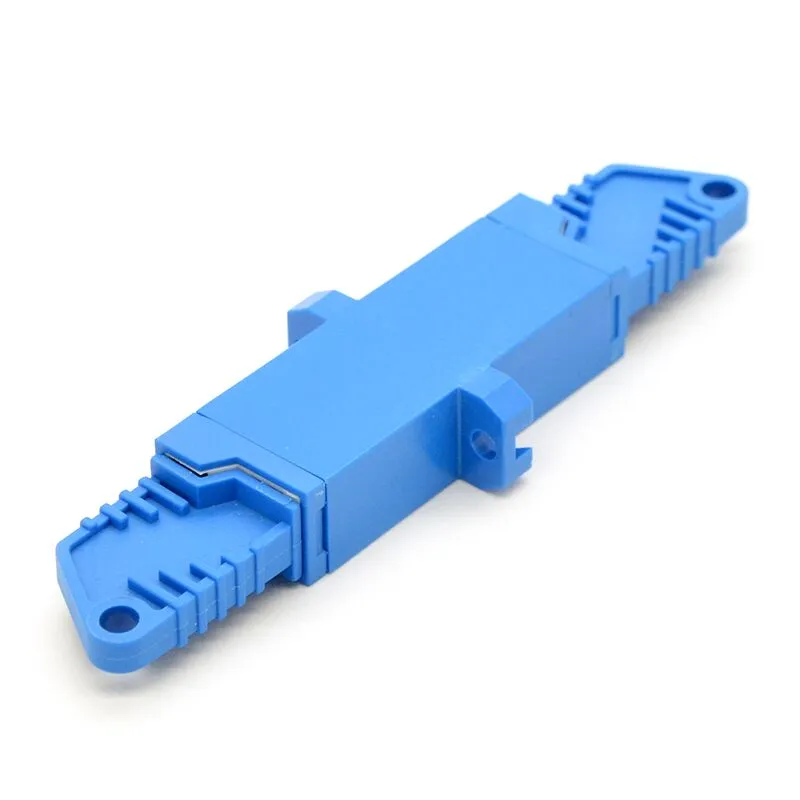

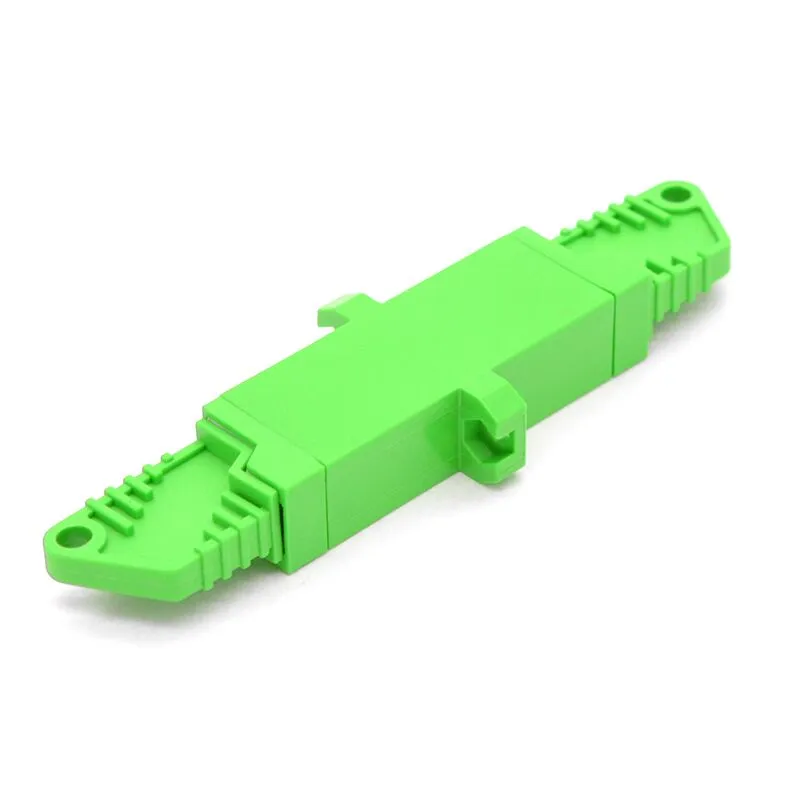

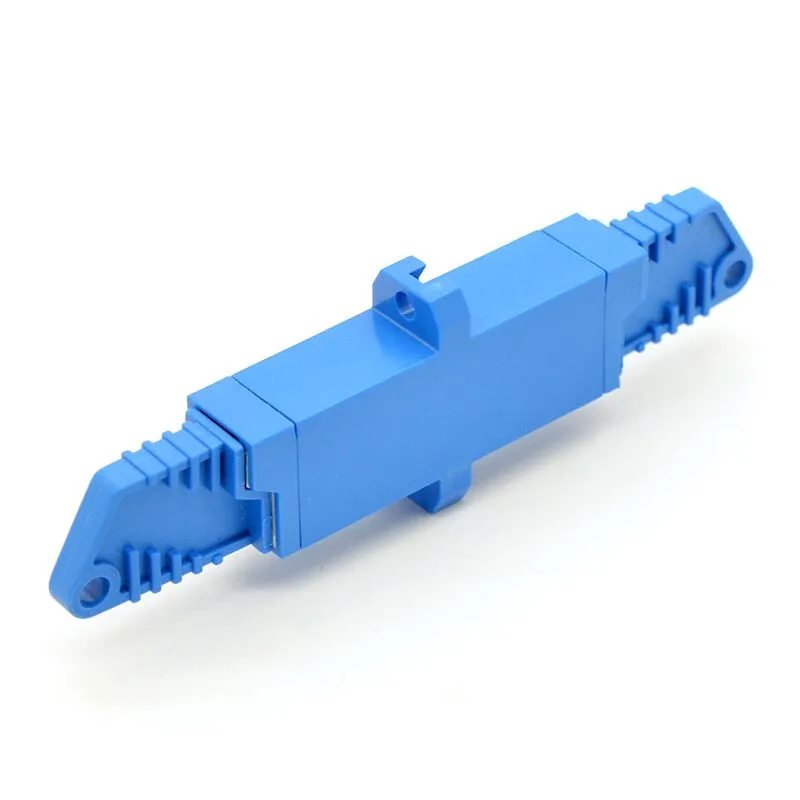

The E2000 to E2000 UPC/APC Single Mode Simplex with Flange Fiber Adapter is designed for high-performance optical coupling in telecom, FTTH, and data center environments. Supporting both UPC and APC polished connectors, this adapter ensures low insertion loss, high return loss, and stable long-term performance. Its flange design enables secure mounting in panels, ODFs, and enclosures, making it an essential component for structured optical cabling and testing systems.
FEATURE DETAILS
- UPC & APC Compatibility: Provides flexibility in network design and deployment.
- Flange Mounting: Ensures secure and reliable installation in panels or enclosures.
- Ceramic Sleeves: Deliver precise fiber alignment with stable optical performance.
- Singlemode Optimization: Ideal for long-distance and high-bandwidth transmission.
- Durable Construction: ≥1000 mating cycles, designed for repeated use without performance degradation.
PRODUCT SPECIFICATIONS
| Item | Value |
| Adapter Type | E2000 to E2000 |
| Fiber Mode | Single Mode |
| Fiber Counts | Simplex |
| Polish Type | UPC / APC |
| Durability | ≤0.1dB |
| Insertion Loss | ≤0.2dB |
| Working Temperature | -25~70℃ |
| Sleeve | Ceramic |
| Mounting Style | With flange |
| Housing Material | Plastic |
APPLICATION DETAILS
- Telecom Operators: Long-haul and backbone network connections using E2000 interfaces.
- FTTH/FTTx Networks: Distribution frames and termination points.
- Data Centers: Structured cabling and optical patch panels requiring E2000 adapters.
- CATV Systems: Reliable optical connections for broadband signal transmission.
- Testing Environments: Equipment requiring precise E2000 single mode connections.
FAQ
Q1: What is the difference between UPC and APC polishing?
UPC (Ultra Physical Contact) offers lower insertion loss and is suitable for short to medium distances, while APC (Angled Physical Contact) provides superior return loss, making it ideal for long-distance, high-speed links.
Q2: Why does this adapter include a flange?
The flange design allows secure mounting on panels, ODFs, or enclosures, ensuring better stability during installation and use.
Q3: Can it be used for multimode fibers?
This model is optimized for single-mode applications. Multimode E2000 adapters are available separately.
Q4: How durable is this adapter?
It supports at least 1,000 mating cycles while maintaining consistent optical performance.
Q5: What type of alignment sleeves are used?
The adapter uses zirconia ceramic alignment sleeves for precise fiber alignment and minimal insertion loss.
Q6: Is it compliant with industry standards?
Yes, it complies with IEC 61754, TIA/EIA, and RoHS standards.
