DESCRIPTION

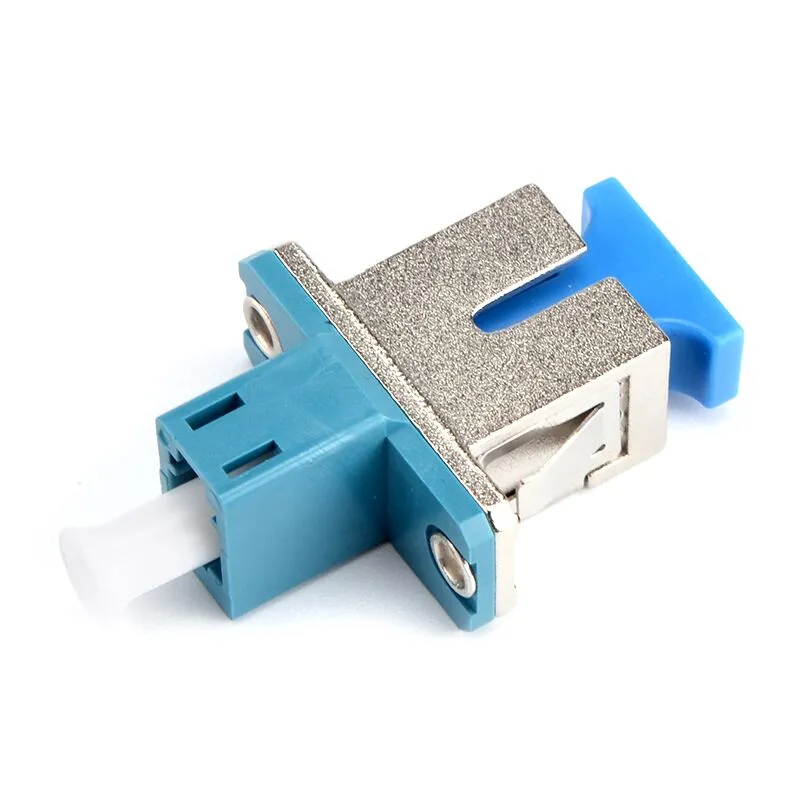

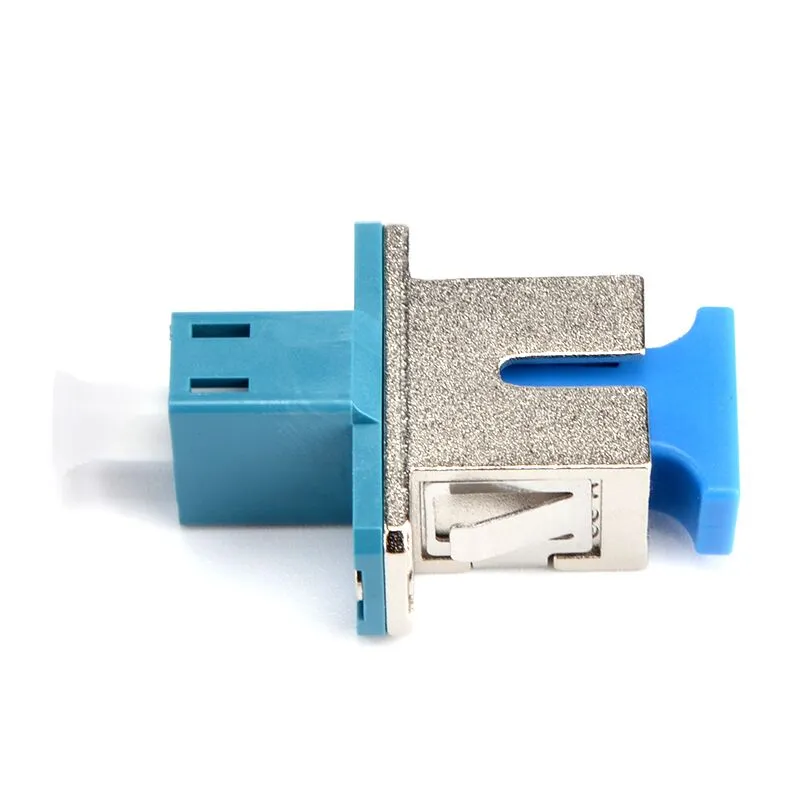

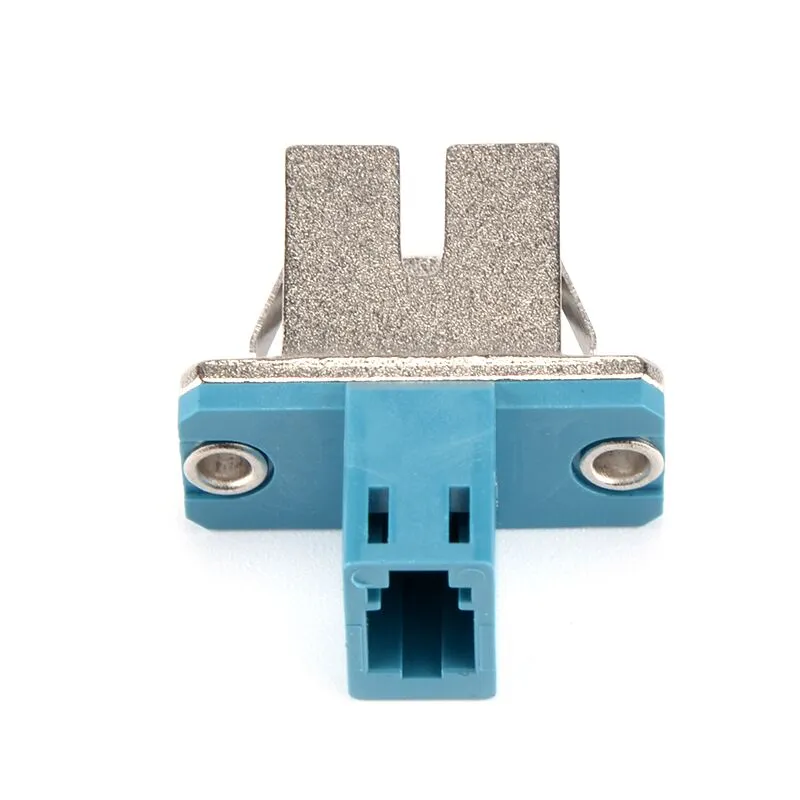

The SC Metal to LC Plastic Simplex Hybrid Fiber Adapter (Female to Female) is designed to provide seamless interconnection between SC and LC connectors in single-fiber networks. With a metal housing on the SC side for durability and a plastic housing on the LC side for lightweight flexibility, it delivers both strength and cost efficiency. This adapter is widely used in telecommunications, FTTH projects, and test environments where SC and LC connectors need to be joined reliably.
- Hybrid Design: Allows seamless conversion between SC and LC connector types.
- Metal & Plastic Housing Combination: Ensures durability while reducing weight and cost.
- Ceramic Sleeve Alignment: Provides precise fiber alignment with minimal loss.
- Compact Simplex Form Factor: Ideal for single-fiber terminations.
- Reliable and Compliant: Meets international fiber optic connectivity standards.
| Item | Value |
| Adapter Type | SC to LC, Female / Female |
| Fiber Mode | Single Mode |
| Fiber Counts | Simplex |
| Durability | ≤0.1dB |
| Insertion Loss | ≤0.2dB |
| Working Temperature | -25~70℃ |
| Sleeve | Ceramic |
| Mounting Style | With flange |
| Housing Material | Metal & Plastic |
- Telecom Networks: SC to LC hybrid connectivity in single-fiber links.
- FTTH Projects: Wall-mounted enclosures requiring mixed interfaces.
- Data Centers: Efficient fiber management across different connector systems.
- ODFs and Cabinets: Panel-mounted adapters for structured fiber connections.
- Testing Setups: Hybrid interface for fiber optic measurement devices.
- What is a hybrid fiber optic adapter?
A hybrid adapter connects different connector types, such as SC to LC, ensuring compatibility in mixed cabling systems.
- Why does this model use metal and plastic housing?
The SC side uses metal for strength and durability, while the LC side uses plastic to keep the adapter lightweight and cost-effective.
- Can it support both single-mode and multimode fibers?
Yes, the adapter is compatible with SM (9/125 µm) and MM (50/125 µm, 62.5/125 µm) fiber systems.
- Is it suitable for APC and UPC connectors?
Yes, it supports both UPC and APC polished connectors, depending on your application requirements.
- How is it mounted in panels or ODFs?
It comes with panel-mounting features for easy integration into ODFs, distribution frames, and wall boxes.
- How long does it last?
The adapter is rated for ≥1000 mating cycles with stable optical performance.
