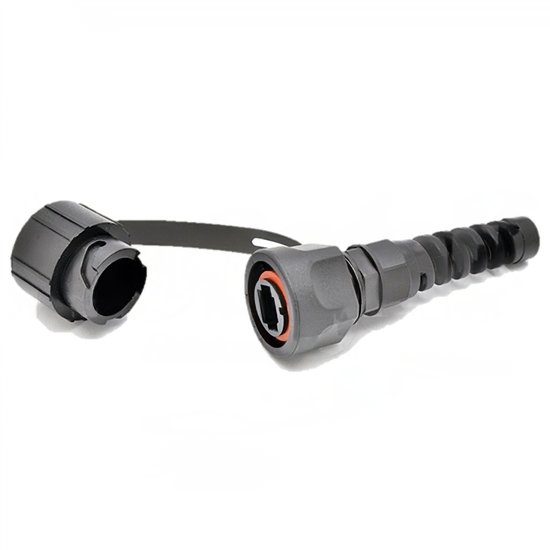

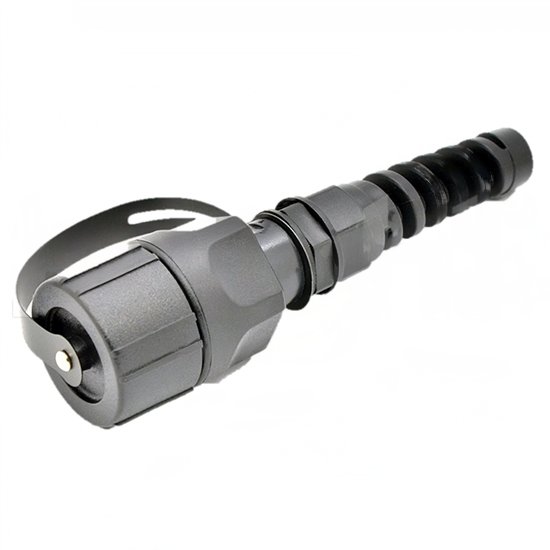

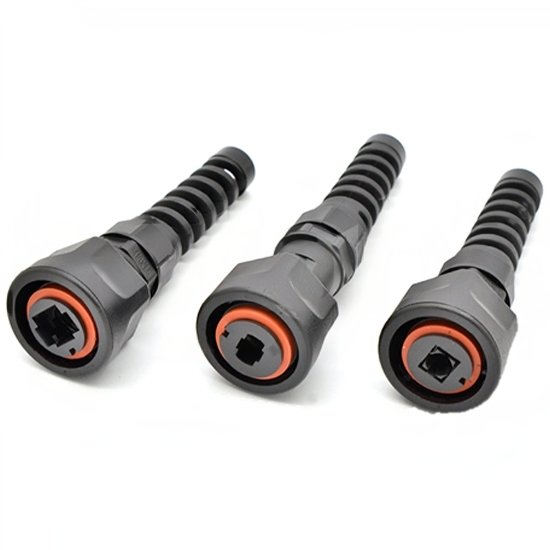

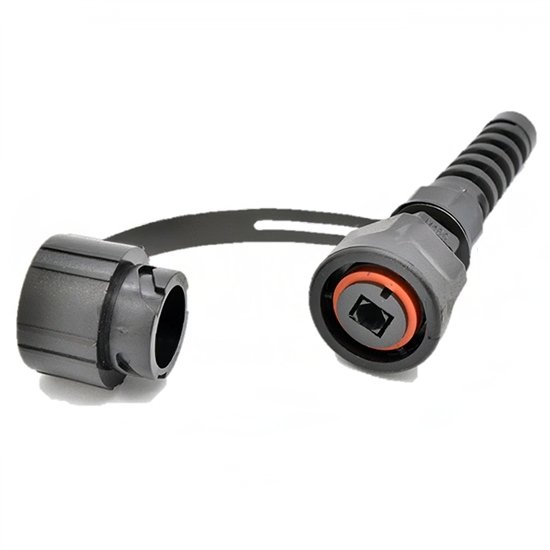

IP67 ODVA Waterproof Fiber Optic Connector – LC SC MPO MTP Interfaces

The IP67 ODVA LC/SC/MPO/MTP Waterproof Fiber Optic Connector is designed for outdoor and industrial applications, providing reliable connectivity in harsh environments. With its IP67 rating, this connector ensures complete protection against dust and water ingress, making it ideal for outdoor fiber optic networks. Available in various connector types (LC, SC, MPO, MTP), it offers flexibility and compatibility for different network requirements. Its durable construction, high performance, and ease of installation make it a preferred choice for telecom and industrial applications.

Engineering Suitability & Selection Boundaries

1. When This Product Is the Right Choice

• Typically selected for outdoor / industrial Ethernet / base-station environments where the connector interface must tolerate IP67 dust + temporary water exposure at the cable-to-equipment boundary.
• Commonly used when the project needs an ODVA-style hardened ecosystem but must support different front-end interfaces (LC, SC, MPO/MTP) across cabinets, RRUs, and outdoor enclosures.
• Usually appropriate when the site cable build is within the stated 5.0–7.0 mm OD range so the sealing and strain relief can maintain consistent long-term protection.
• Typically suitable when the network plan clearly defines the polish convention (UPC vs APC) and interface choice per segment to keep spares and commissioning steps consistent.

2. When This Product May NOT Be Suitable

• May not be suitable for locations with standing water / long-duration submersion risk, since IP67 designs are commonly used for rain/splash and temporary immersion scenarios rather than submersion zones.
• Commonly unsuitable if the project does not standardize the hardened connector ecosystem (ODVA vs other families), as cross-family mismatch commonly causes non-mating and spare incompatibility.
• May not be appropriate when installers cannot maintain clean sealing surfaces and full coupling engagement, since sealing failures often occur before optical loss trends are noticed.
• Typically not suitable if the actual cable OD is outside 5.0–7.0 mm, as seal compression and pull stability depend on correct clamp fit.

3. Common Selection Mistakes to Avoid

• Choosing the interface (LC/SC/MPO/MTP) without locking down the full endpoint ecosystem and field handling procedure, which commonly leads to mixed spares and delayed turn-up.
• Selecting IP67 protection for a location behaving like a submersion zone, which commonly causes early failures unrelated to insertion loss.
• Treating the connector as the only protection element while overlooking enclosure-level cable entry management and strain relief, which typically determines long-term stability in outdoor cabinets.

Feature Details

• IP67 Rating: Guarantees full protection against dust and water, ensuring reliability in adverse conditions.
• Multiple Connector Types: Compatible with LC, SC, MPO, and MTP connectors for versatile application needs.
• Durable Build: Designed to endure mechanical stress, temperature variations, and environmental hazards.
• Ease of Use: Quick-connect design allows for easy installation and reassembly, minimizing downtime and labor costs.
• High Optical Performance: Ensures low insertion loss and high return loss for superior signal quality and network stability.

Product Specifications

Application Details

• Outdoor Fiber Optic Networks: Provides robust connectivity in outdoor environments, withstanding extreme weather conditions.
• Industrial Environments: Suitable for use in industrial Ethernet applications where high durability is required.
• Telecommunication Base Stations: Ensures reliable network connectivity for base stations and remote units.
• FTTx Applications: Ideal for Fiber to the Home (FTTH), Fiber to the Building (FTTB), and other FTTx deployments requiring high protection levels.

FAQ

Q1: What does IP67 protection mean for this connector?
It means the connector is fully dustproof and protected against temporary immersion in water, suitable for outdoor and industrial environments.

Q2: Which connector interfaces are available?
The ODVA connector is available with LC, SC, MPO, and MTP interfaces to support different network requirements.

Q3: Is this connector suitable for outdoor installations?
Yes. It is specifically designed for outdoor fiber optic networks and harsh environments.

Q4: What optical performance can be expected?
Typical insertion loss is ≤0.3 dB, with return loss ≥50 dB for UPC and ≥60 dB for APC configurations.

Q5: Can the connector be reused?
Yes. The design allows reassembly and reuse for maintenance and network reconfiguration.

Q6: What cable diameters are supported?
It supports fiber cables with diameters ranging from 5.0 mm to 7.0 mm.

Q7: Is it suitable for industrial Ethernet systems?
Yes. Its rugged housing and environmental protection make it ideal for industrial Ethernet and automation networks.
