DESCRIPTION

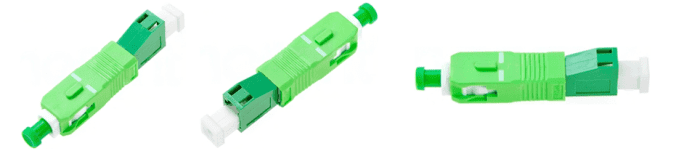

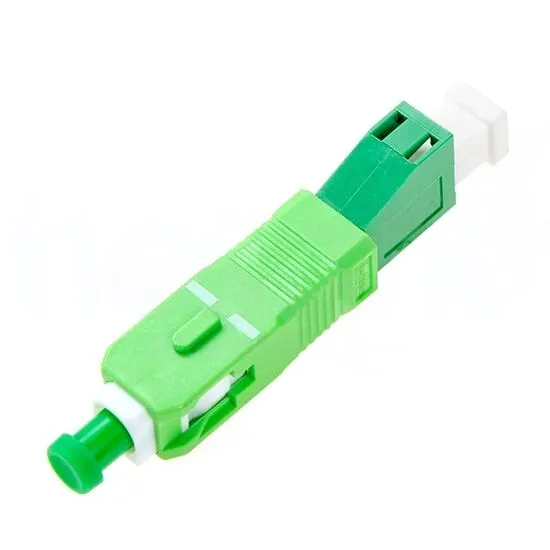

The LC/APC Female to SC/APC Male Single Mode Simplex Hybrid Fiber Adapter is designed for interconnecting different fiber connector types in a single optical link. With its hybrid interface, it allows direct connection between an LC/APC female connector and an SC/APC male connector, eliminating the need for additional patch cords.
This adapter ensures low insertion loss, high return loss, and stable single mode transmission, making it suitable for FTTx, telecom, and data center applications where LC and SC connectors are used together.
FEATURE DETAILS
- Hybrid Connectivity: Enables quick connection between LC and SC APC connectors.
- Low Insertion Loss: Zirconia ceramic sleeve ensures precise alignment.
- Compact Size: Ideal for high-density network environments.
- Simplex Design: Supports one-fiber connections for single mode applications.
- Durable Build: Designed for long-term stability in telecom and data center use.
PRODUCT SPECIFICATIONS
| Item | Value |
| Connector Type | SC/APC to LC/APC |
| Fiber Mode | Single mode |
| Fiber Counts | Simplex |
| Sleeve | Ceramic |
| Durability | ≤0.1dB |
| Insertion Loss | ≤0.2dB |
| Working Temperature | -25~70°C |
| Housing Material | Plastic |
APPLICATION DETAILS
- Fiber Test Equipment: Enables flexible connector matching during testing.
- Telecom Rooms: Provides easy LC-to-SC interface in racks and panels.
- FTTx Projects: Supports hybrid connections between access and distribution networks.
- Data Centers: Simplifies patching in high-density interconnection environments.
- CATV Networks: Ensures low-reflection performance for video signal transmission.
FAQ
Q1: What connector types does this adapter support?
It connects an LC/APC female connector to an SC/APC male connector.
Q2: Is it suitable for single mode applications?
Yes, it is specifically designed for single-mode simplex connections.
Q3: What polishing type is used?
It uses APC (Angled Physical Contact) polishing to achieve low return loss.
Q4: Can it be reused multiple times?
Yes, it supports more than 1,000 mating cycles while maintaining stable optical performance.
Q5: Where is this hybrid adapter typically used?
It is widely used in FTTx deployments, data centers, test equipment, and telecom rooms where LC and SC interfaces need to be interconnected.
