DESCRIPTION

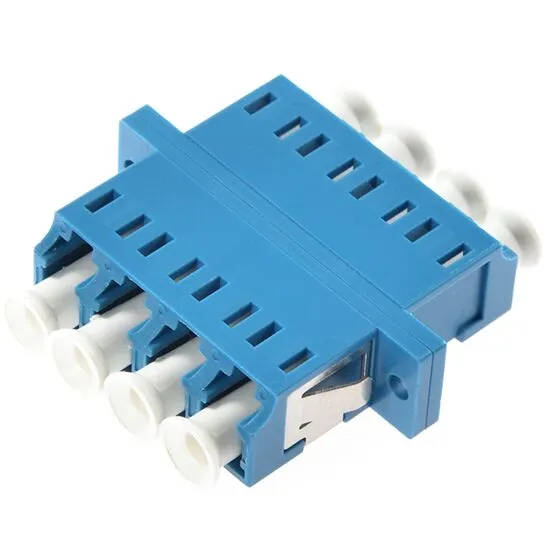

The LC Quad Single Mode/Multimode Fiber Optic Adapter is designed to provide high-density fiber optic connectivity in telecommunication networks, data centers, and FTTH installations. This adapter features four LC ports in a compact configuration, making it ideal for space-constrained environments requiring efficient fiber management.
Equipped with zirconia ceramic alignment sleeves, the LC Quad adapter guarantees precision alignment, low insertion loss, and excellent repeatability. It is compatible with standard LC connectors and supports both single-mode and multimode fibers, ensuring seamless integration into diverse network setups.
Feature Details
- Compact Design: Quad LC ports in a single adapter save space while offering high connection density.
- Reliable Performance: Zirconia ceramic alignment sleeves ensure precise optical alignment and consistent performance.

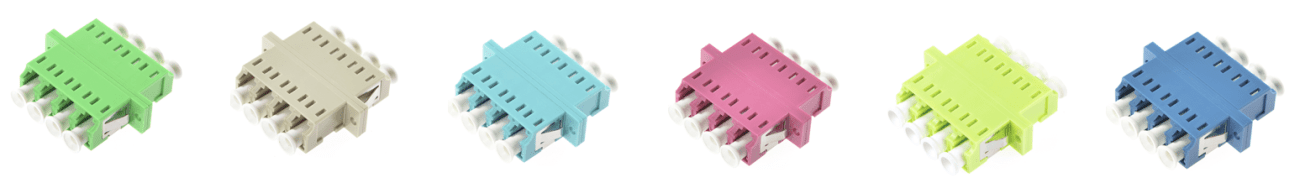

- Color-Coded Options: Adapter housing available in blue (UPC), green (APC), and beige (MM) for easy identification.
- Customizable Options: Flanged and flangeless designs available to suit different installation requirements.
- Durability: Manufactured with high-quality materials for long-lasting performance under demanding conditions.

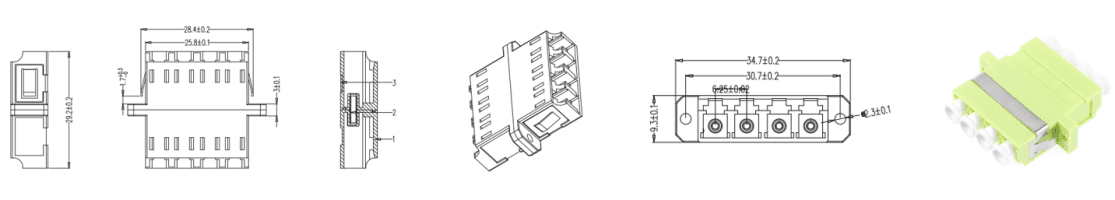

Product Specifications
| Parameter | Value |
| Adapter Type | LC Quad Adapter |
| Fiber Mode | Single Mode (SM), Multimode (MM) |
| Connector Compatibility | LC UPC, LC APC |
| Alignment Sleeve Material | Zirconia Ceramic |
| Insertion Loss | ≤0.2 dB |
| Durability | ≥ 1000 Mating Cycles |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Housing Material | PBT or ABS Plastic |
| Color Options | Blue (UPC), Green (APC), Beige (MM) |
| Mounting Style | Flanged or Flangeless |
Application Details
- FTTH/FTTB Networks: Provides reliable connectivity for fiber distribution in home or building networks.

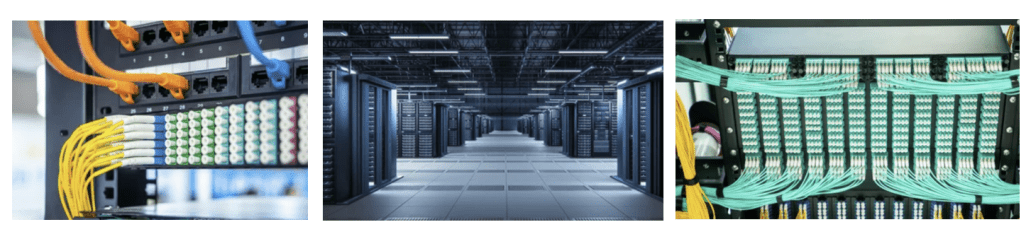

- Data Centers: Ideal for high-density fiber patch panels and distribution frames.
- Telecommunication Systems: Ensures seamless connections in long-haul and metropolitan networks.
- CATV Systems: Used for stable video and data signal transmission.
- Testing and Measurement Equipment: Ensures accurate performance during fiber optic testing.
FAQ
Q1: What is the difference between LC Quad and LC Duplex adapters?
A1: LC Quad adapters support four LC connectors, doubling the density compared to duplex types, making them ideal for high-density panels.
Q2: Can this LC Quad adapter be used for both single-mode and multimode fibers?
A2: Yes. It’s designed to support both SM and MM fibers with precision alignment sleeves.
Q3: What materials are used in the LC Quad adapter?
A3: The housing is made of durable polymer or metal, and the sleeve is zirconia ceramic for low insertion loss.
Q4: What is the typical insertion loss performance?
A4: The insertion loss is ≤0.2 dB and return loss ≥50 dB (SM), ensuring stable signal transmission.
Q5: Where is the LC Quad adapter typically installed?
A5: It’s widely used in ODFs, patch panels, data centers, and FTTH systems.
