DESCRIPTION

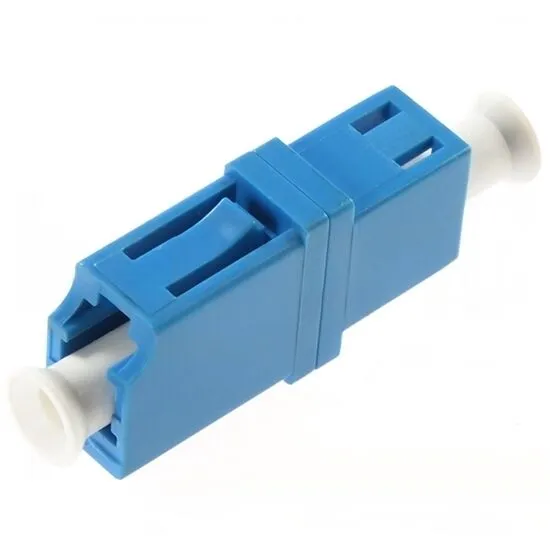

The LC Simplex Single Mode/Multimode Fiber Optic Adapter is designed to provide reliable fiber connections in both single mode and multimode networks. This compact adapter ensures low insertion loss and high return loss, offering stable and efficient optical performance.
Featuring a precision zirconia ceramic sleeve, this LC adapter guarantees accurate fiber alignment, essential for maintaining signal integrity. Its compact, lightweight design makes it suitable for high-density applications, such as data centers and telecommunications networks. Available in durable plastic or metal housing, this adapter is built to withstand the demands of various environments.
Feature Details
- Simplex Configuration: Designed for single fiber connections, optimizing space in dense networking setups.
- Zirconia Ceramic Sleeves: Ensure precise alignment, minimizing signal loss and maximizing return loss.
- Sturdy Housing Options: Available in both plastic and metal variants, catering to different environmental requirements.
- Fiber Versatility: Compatible with SM and MM fibers, supporting diverse network needs.
- User-Friendly Installation: Plug-and-play functionality for quick, hassle-free setup without the need for tools.
Product Specifications
| Parameter | Value |
| Adapter Type | LC Simplex Adapter |
| Fiber Mode | Single Mode (SM), Multimode (MM) |
| Connector Compatibility | LC UPC, LC APC |
| Alignment Sleeve Material | Zirconia Ceramic |
| Insertion Loss | ≤0.2 dB |
| Durability | ≥ 1000 Mating Cycles |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Housing Material | Plastic or Metal |
| Color Options | Blue, Beige, Aqua, Green, Pink |

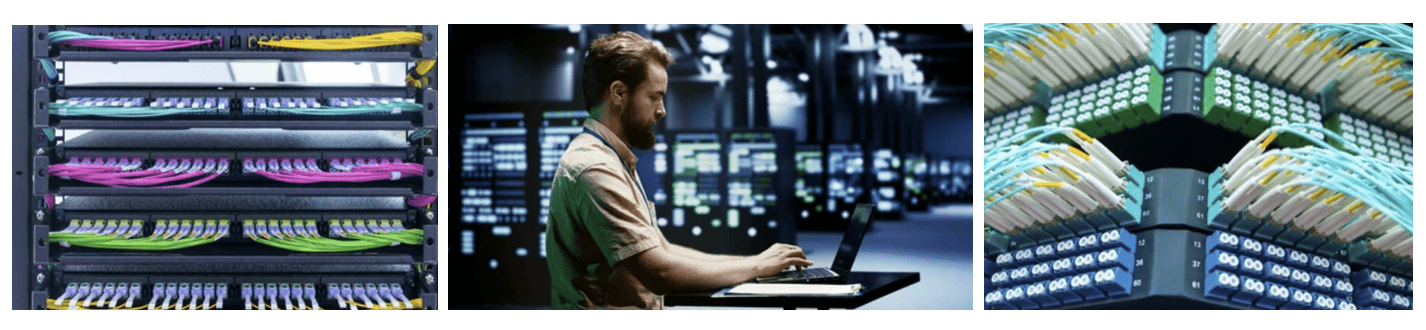

Application Details
- Telecommunications Networks: Provides robust fiber connections for extensive network systems.
- Data Centers: Ideal for high-density applications, optimizing space and ensuring reliable performance.
- FTTH Systems: Facilitates efficient and stable connections in fiber-to-the-home setups.
- CATV Networks: Supports stable and efficient data and video transmissions.
- Testing Equipment: Ensures precise and dependable fiber connections in optical testing environments.
FAQ
Q1: What is an LC simplex adapter used for?
A1: It connects and aligns two LC connectors to maintain optical continuity in a single-fiber link.
Q2: Can it support both SM and MM fibers?
A2: Yes, it’s fully compatible with both single-mode and multimode LC connectors.
Q3: What is the typical insertion loss value?
A3: The insertion loss is ≤0.2 dB with high-precision ceramic sleeves.
Q4: Is it available in different colors?
A4: Yes. Blue for SM, beige for MM, and green for APC versions.
Q5: Where is it commonly used?
A5: In patch cords, FTTH boxes, wall plates, and fiber distribution frames.
