LC UPC Field-Assembly Fast Fiber Optic Connector – for FTTH Drop Cables

The HOLIGHT LC/UPC Field Assembly Fast Connector Series provides a versatile and easy-to-use solution for field termination and repair of optical fibers.

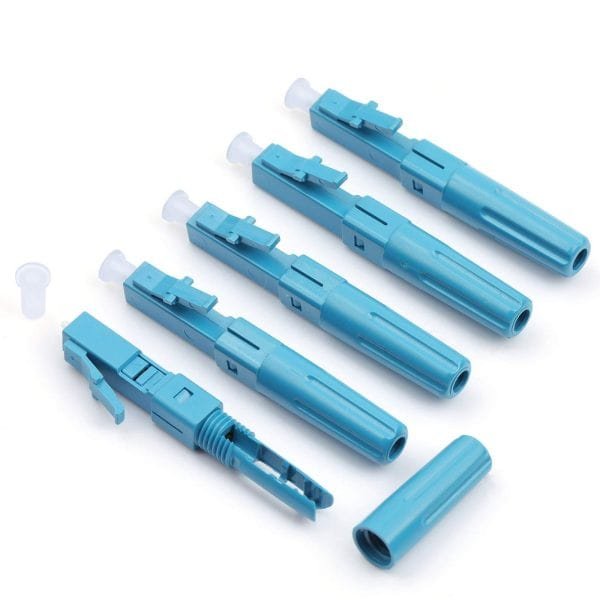

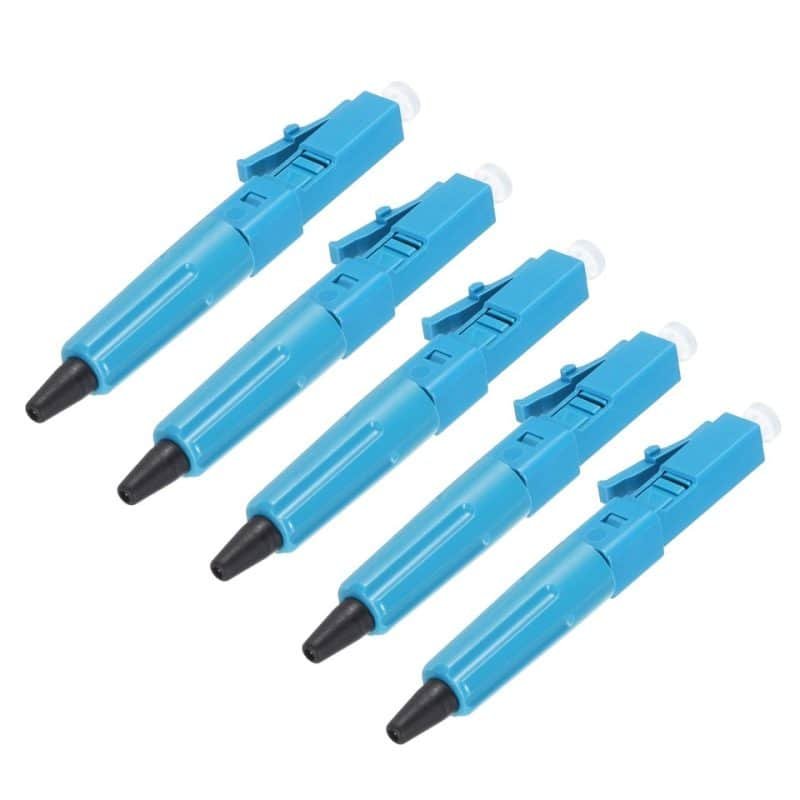

This series includes two structural variants:

• Universal Type for general round cables and patch cords, widely used in ODFs, pigtails, and data centers.
• Drop Cable Type for FTTH flat drop cables, designed to simplify last-mile optical fiber deployment in residential networks.

Both versions adopt pre-polished ferrules and mechanical alignment structures, eliminating the need for epoxy, curing, or special polishing tools.

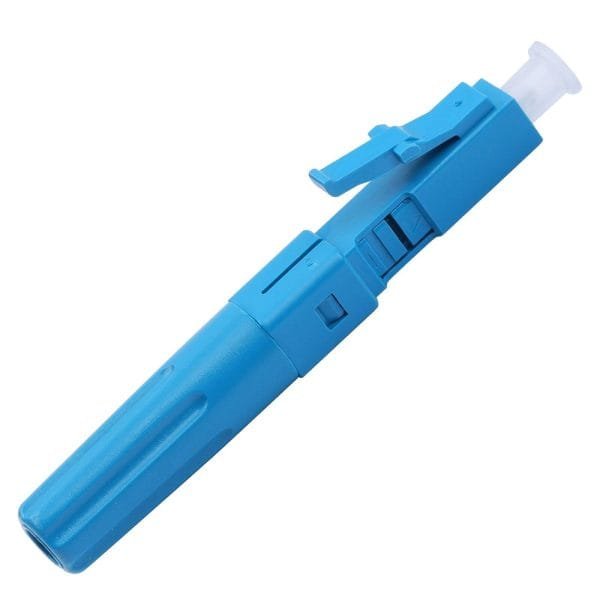

The LC/UPC flat-endface (blue housing) ensures low insertion loss and consistent performance for all indoor and short-range optical connections.

Engineering Suitability & Selection Boundaries

1. When This Product Is the Right Choice

• Typically selected when the site needs rapid LC/UPC field termination on single-mode fibers without epoxy, curing, or field polishing.
• Commonly used when the cable type is clearly defined as either round indoor cables/pigtails (Universal Type) or flat FTTH drop cables (Drop Cable Type) and the build can stay consistent across the job.
• Usually appropriate for FTTH last-mile endpoints and access points where quick restoration or on-site re-termination is needed and the installation workflow includes proper stripping + cleaving.
• Typically suitable when the deployment is indoor / semi-outdoor terminal box contexts consistent with the stated positioning (Universal Type for indoor use; Drop Cable Type for terminal-box style endpoints).

2. When This Product May NOT Be Suitable

• May not be suitable when the actual cable structure does not match the intended variant (e.g., using the Drop Cable Type on non-matching drop geometries, or using the Universal Type where a flat drop fixation method is needed), since mechanical retention may become unstable.
• Commonly unsuitable when field conditions make consistent cleave quality and clean fiber handling difficult, as mechanical field-assembly terminations are typically more sensitive to workmanship variation.
• May not be appropriate when the connection point is exposed to unmanaged environmental stress beyond a protected terminal/box setup, since the product positioning separates indoor vs semi-outdoor usage by type.
• Typically not suitable when the site requires a connector ecosystem other than LC/UPC (blue), since polish/ecosystem consistency is a common source of commissioning errors.

3. Common Selection Mistakes to Avoid

• Selecting the connector variant by interface only (“LC/UPC”) and overlooking cable compatibility (round vs flat drop; specific drop sizes), which commonly leads to weak strain retention and early instability.
• Treating field assembly as “plug-in” without controlling strip length, cleave quality, and fiber cleanliness, which commonly causes intermittent loss variation during acceptance testing.
• Mixing termination practices across teams (some using Universal Type, some using Drop Cable Type for similar endpoints) without a uniform build rule, which commonly increases rework and troubleshooting time.

Feature Details

1. Pre-Polished Mechanical Design
   Both types feature a pre-polished ceramic ferrule that allows simple mechanical fiber insertion without epoxy or curing. This ensures consistent optical performance even in field conditions.
2. Dual Structural Options for Different Cables

• Universal Type handles round indoor cables or pigtails for ODF and patch panel assembly.
• Drop Cable Type securely terminates flat FTTH cables in wall boxes or user endpoints.

3. Reliable Optical and Mechanical Performance
   Precision-aligned ferrules guarantee IL ≤0.3 dB and RL ≥45 dB, with robust housing and strain relief for long-term stability.
4. Fast and Tool-Free Installation
   No polishing or adhesives required—each connector can be assembled in under 2 minutes with basic fiber stripping and cleaving tools.
5. Reusable and Easy Maintenance
   The connector can be reassembled multiple times for field rework or cable replacement without degrading optical performance.

Product Specifications

Application Details

• FTTH Home Termination – Drop cable type for final indoor user connections.
• Data Center or ODF Panels – Universal type for pigtail or jumper assembly.
• Field Maintenance & Repairs – Ideal for quick restoration of fiber continuity.
• Enterprise Networks – Ensures reliable and repeatable patching.
• Telecommunication Access Points – Compatible with wall outlets and terminal boxes.

FAQ

Q1: What is the difference between Universal and Drop Cable types?
The Universal type is designed for round indoor cables and pigtails. The Drop Cable type is optimized for flat FTTH drop cables, such as 2×3 mm or 2×5 mm structures.

Q2: What polishing type is used for LC/UPC connectors?
LC/UPC connectors use a flat end-face polish. This provides a typical return loss of ≥45 dB, suitable for most FTTH and data transmission applications.

Q3: Are these connectors reusable?
Yes. The connectors can be reassembled multiple times, making them suitable for re-termination, on-site adjustments, and testing.

Q4: Are epoxy or polishing tools required for installation?
No. These are mechanical field-assembly connectors and do not require epoxy, glue curing, or polishing equipment.

Q5: What fiber types are supported?
They support single-mode fibers such as G.657A and G.652D, commonly used in FTTH and access networks.

Q6: How long does installation typically take?
Installation usually takes less than 2 minutes using a standard fiber cleaver and basic hand tools.

Q7: Can these connectors be used in outdoor environments?
The Universal type is recommended for indoor use. The Drop Cable type is suitable for semi-outdoor environments, such as FTTH terminal boxes.

Q8: What are the typical insertion loss and return loss values?
Typical insertion loss is ≤0.3 dB, and return loss is ≥45 dB for UPC-polished connectors.
