DESCRIPTION

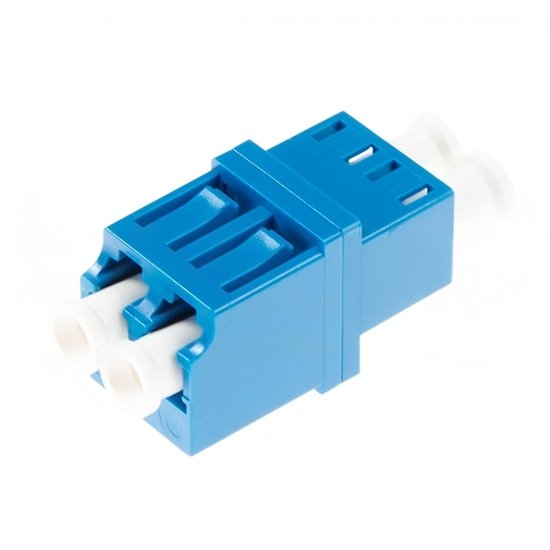

The LC to LC UPC Duplex Low Profile Fiber Adapter without Flange is designed for space-saving, high-density fiber optic applications where secure and precise LC connections are required.

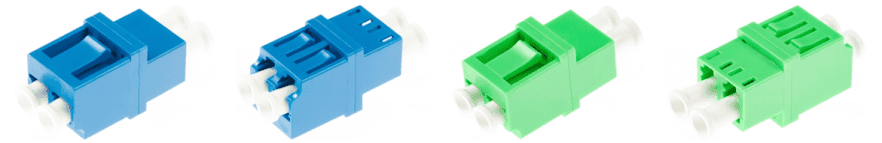

This duplex adapter supports two fibers (Tx/Rx) simultaneously and is available in both UPC (blue) and APC (green) polish types, providing flexibility for different single mode network requirements. Its low-profile, flangeless design allows for compact installations in high-density data centers, distribution frames, and patch panels.
With a zirconia ceramic alignment sleeve, it ensures low insertion loss, excellent return loss, and long-term reliability, making it suitable for demanding telecom and enterprise applications.
FEATURE DETAILS
- Compact Design: Low-profile body fits tight spaces in high-density networks.
- UPC & APC Options: Supports different return loss requirements.
- Duplex Transmission: Enables simultaneous Tx/Rx connections.
- Precision Zirconia Sleeve: Guarantees stable alignment and low signal loss.
- Long-Term Durability: Withstands frequent connections in telecom and data centers.
PRODUCT SPECIFICATIONS
| Item | Value |
| Connector Type | LC to LC |
| Fiber Mode | Single mode |
| Polish Type | UPC |
| Fiber Counts | Duplex |
| Durability | ≤0.1dB |
| Insertion Loss | ≤0.2dB |
| Working Temperature | -25~70℃ |
| Sleeve | Ceramic |
APPLICATION DETAILS
- FTTH and FTTx Systems: Provides reliable customer-end connections.
- Telecom Networks: Ensures stable single mode transmission.
- Data Centers: Perfect for high-density racks and enclosures.
- Enterprise LAN/WAN: Flexible adapter for duplex fiber networks.
- Optical Testing Setups: Suitable for hybrid test environments requiring LC connections.
FAQ
Q1: What is the difference between UPC and APC adapters?
UPC (blue) adapters offer low insertion loss and are suitable for most general-purpose single-mode networks.
Q2: Why use a low-profile, flangeless adapter?
It is designed for high-density applications, helping save space in patch panels and distribution frames.
Q3: Can this adapter be used with multimode fibers?
This specific model is optimized for single-mode (UPC/APC) connections and is not intended for multimode fiber.
Q4: How many times can the adapter be re-used?
It is designed to support at least 1,000 mating cycles while maintaining stable optical performance.
Q5: Where is this adapter most commonly used?
It is commonly used in data centers, telecom systems, FTTH networks, and enterprise cabling infrastructures.
