DESCRIPTION

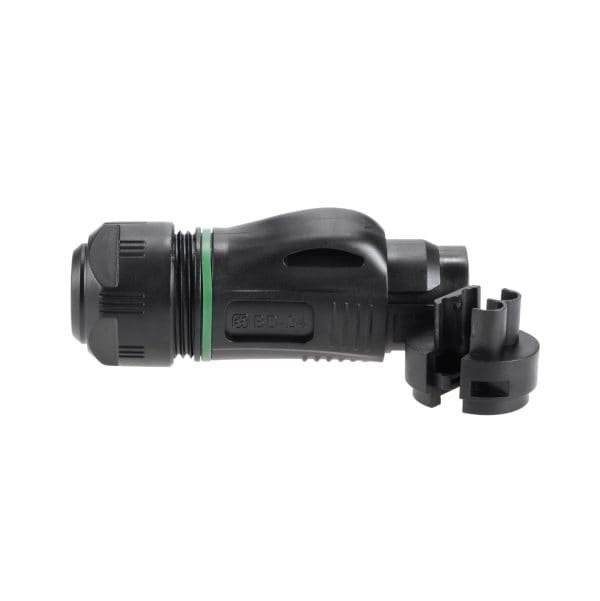

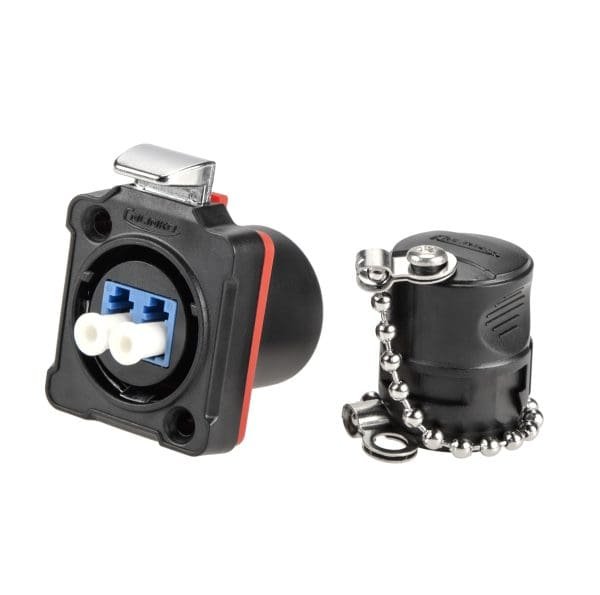

The HWC-LC01 Waterproof LC Duplex Fiber Optic Connector & Adapter is a complete outdoor-grade solution combining both the LC duplex connector and waterproof adapter.
This pairing ensures long-term stable optical transmission in FTTH, FTTA, and industrial projects where dust, rain, and vibration are critical challenges. With its push-lock design and precision sealing, it guarantees secure connectivity, reduces installation time, and supports high reliability even in harsh outdoor conditions.
- Connector + Adapter Integration: Designed as a pair, ensuring a fully waterproof LC duplex interface for outdoor use.
- Quick Installation: Connector’s push-lock mechanism mates directly with the adapter, reducing labor time.
- Durability Under Stress: Both connector and adapter are tested for ≥500 mating cycles, maintaining low loss.

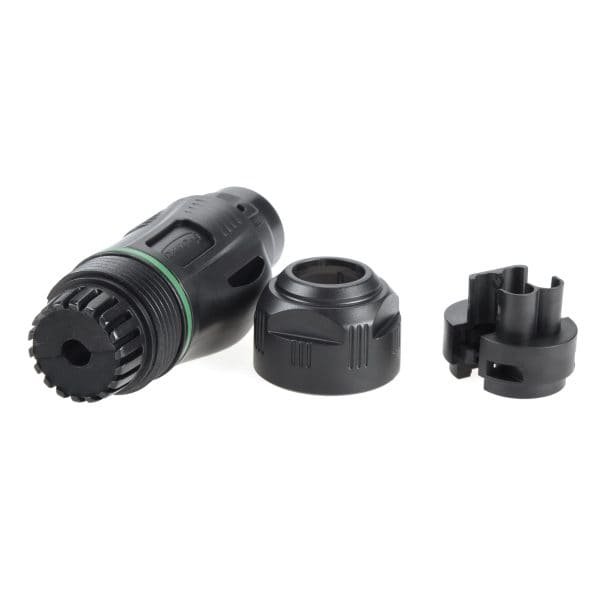

- Flexible Housing Options: Available in cost-effective plastic or rugged metal housings to suit different project demands.
- Environmental Resilience: With IP65/IP67/IP68 protection, both parts resist water, dust, vibration, and high pressure.
- System Compatibility: Fits standard LC duplex optical modules and patch cords, enabling seamless integration.
| Parameter | Connector Value | Adapter Value |
| Type | LC Duplex (Singlemode) | LC Duplex Waterproof Adapter |
| Insertion Loss | ≤ 0.35 dB | ≤ 0.35 dB |
| Return Loss | ≥ 50 dB | ≥ 50 dB |
| Durability | ≥ 500 mating cycles | ≥ 500 mating cycles |
| Protection Level | IP65 (Standard), IP67/IP68 Optional | IP65 (Standard), IP67/IP68 Optional |
| Cable O.D. Range | Φ 5.0 – Φ 6.5 mm | Compatible with LC connectors |
| Housing Material | PBT (Plastic) / Zinc Alloy (Metal) | PBT / Metal optional |
| Sealing Material | Silicone / Rubber | Silicone sealing ring |

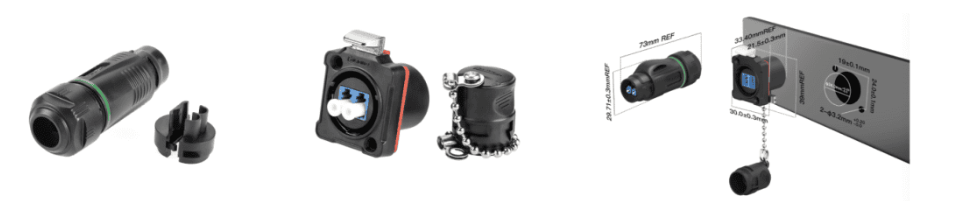

| Assembly Style | Straight-through type | Panel / bulkhead mountable |
| Operating Temp. | -25℃ ~ +85℃ | -25℃ ~ +85℃ |
- FTTH Outdoor Drops: Secure waterproof outlet using LC connector + adapter set.
- FTTA Base Stations: Outdoor fiber connections in telecom towers.
- Industrial Networks: Factory floor fiber optics exposed to moisture and vibration.
- Energy Sector: Power grid and oil/gas cabling projects requiring robust sealing.
- Transportation & Ports: Outdoor fiber connectivity in rail, marine, and logistics hubs.
- Surveillance Systems: Outdoor camera and monitoring systems needing waterproof LC terminations.
Q1. Why is this product listed as both Connector & Adapter?
Because the waterproof LC duplex connector is designed to work with its matching adapter, ensuring a sealed and secure fiber interface.
Q2. What protection levels are available?
IP65 standard, with optional IP67/IP68 for harsher environments.
Q3. Are both connector and adapter available in plastic and metal?
Yes. Both can be provided in PBT plastic or zinc alloy metal.
Q4. How many mating cycles can they support?
Both parts are rated for ≥500 mating cycles.
Q5. What is the insertion and return loss performance?
Insertion loss ≤0.35 dB, return loss ≥50 dB.
Q6. Can the adapter be panel mounted?

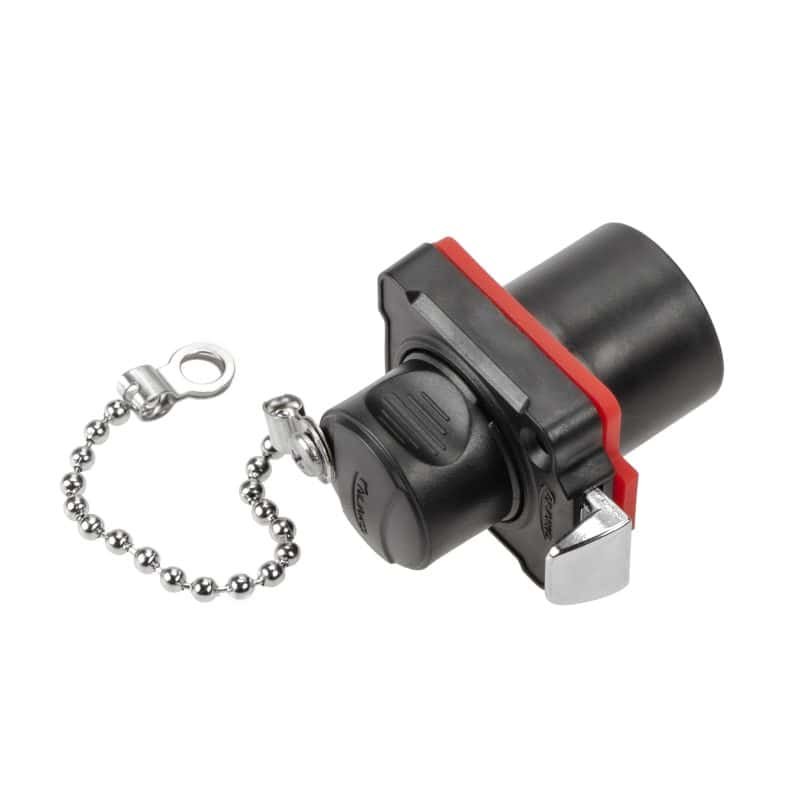

Yes, the waterproof LC adapter can be bulkhead/panel mounted for outdoor enclosures.
Q7. What cable sizes are supported?
The connector supports 5.0–6.5 mm O.D. fiber cables.
Q8. What are the typical applications?
FTTH drops, FTTA base stations, power grid, industrial cabling, outdoor surveillance, and port/transport networks.
