DESCRIPTION

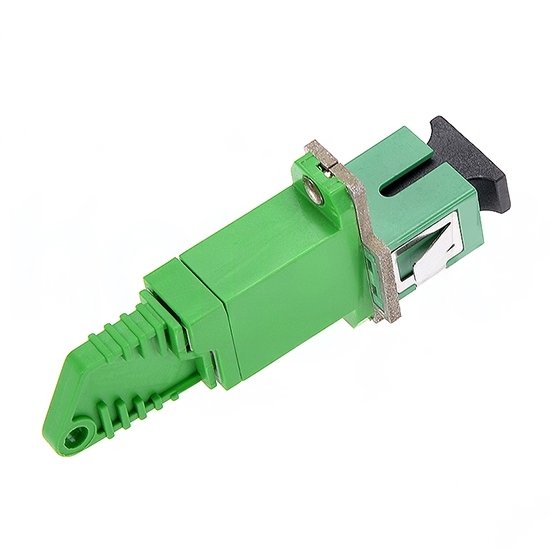

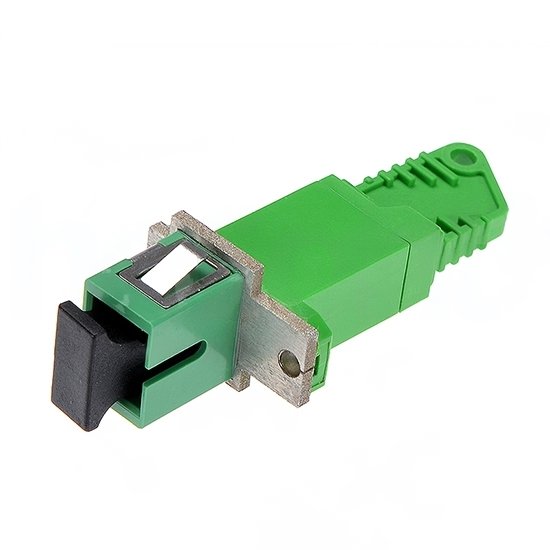

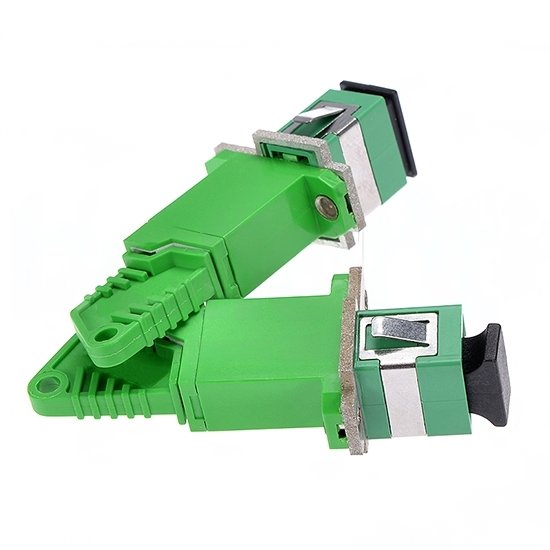

The E2000 to SC Single Mode Simplex Fiber Adapter is a hybrid optical adapter designed to interconnect E2000 and SC connectors within single mode networks. Built with a zirconia ceramic alignment sleeve, it ensures precise fiber alignment and minimal insertion loss during operation. Its simplex design supports one fiber channel per adapter, making it ideal for telecom systems, broadband networks, and high-performance enterprise cabling. With a durable housing and standard footprint, this adapter is widely used in optical distribution frames, patch panels, and fiber test systems.
- Hybrid E2000-SC Interface: Enables seamless connectivity between different fiber connector types in telecom and enterprise networks.
- Single Mode Performance: Designed for SM fibers, providing low insertion loss and stable optical performance over long distances.
- Zirconia Ceramic Sleeve: Ensures precise alignment, high repeatability, and low optical loss across multiple mating cycles.
- Simplex Design: Supports one fiber channel per adapter, making it suitable for point-to-point single mode connections.
- Durable Housing: Available with polymer or metal body options for strength and reliability in various environments.
| Item | Value |
| Connector Type | E2000 to SC |
| Fiber Mode | Single mode |
| Fiber Counts | Simplex |
| Housing Color | Green |
| Durability | ≤0.1dB |
| Insertion Loss | ≤0.2dB |
| Working Temperature | -25~70°C |
| Operation Times | ≥1000 |
- Telecom Backbone Networks: Connects E2000 and SC single mode cables in high-capacity telecom systems.
- Optical Distribution Frames: Fits into ODFs and patch panels for cross-connector management.
- CATV Systems: Provides reliable fiber connections in cable television infrastructure.
- Data Centers: Ensures stable connectivity between hybrid connector environments.
- Fiber Test Systems: Used in laboratory and field applications requiring hybrid connector compatibility.
- What is the function of an E2000 to SC adapter?
It connects E2000 and SC fiber connectors, enabling compatibility between different connector systems.
- Is this adapter designed for single mode or multimode?
This version is for single mode applications, but multimode versions are also available.
- Can it be used in ODF systems?
Yes, it is compatible with optical distribution frames and patch panels.
- What is the benefit of a ceramic sleeve?
It ensures precise alignment of the fiber cores, reducing insertion loss and ensuring long-term stability.
- Does it support duplex connections?
No, this model is simplex. Duplex hybrid adapters are also available upon request.
- What is the insertion loss of this adapter?
Typically ≤ 0.2 dB under standard test conditions.
- How many times can the adapter be reused?
It supports at least 1000 mating cycles with stable performance.
- What industries use this type of adapter?
Mainly telecom operators, broadband service providers, CATV systems, and data centers.
