Mini MPO Waterproof Fiber Optic Adapter – IP68 for FTTA Outdoor Deployment

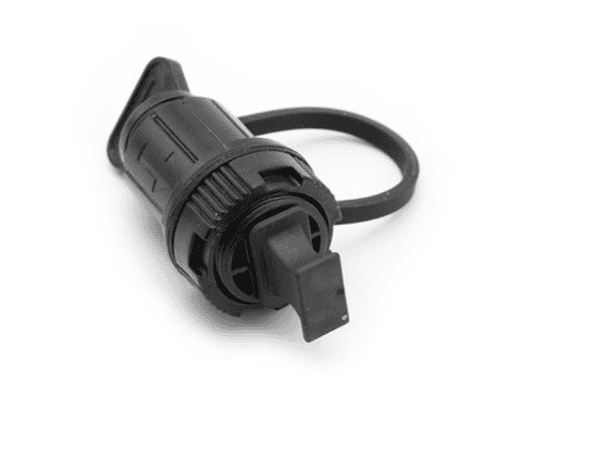

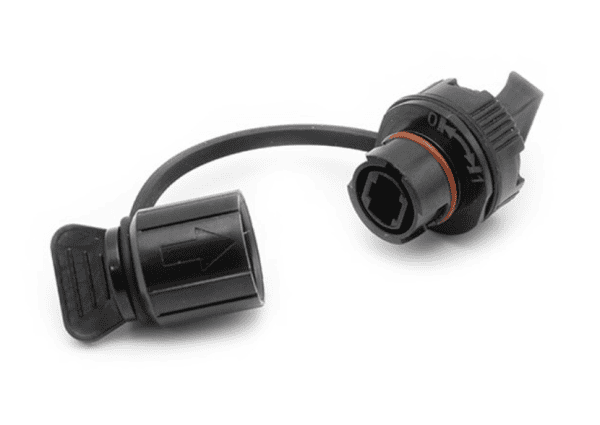

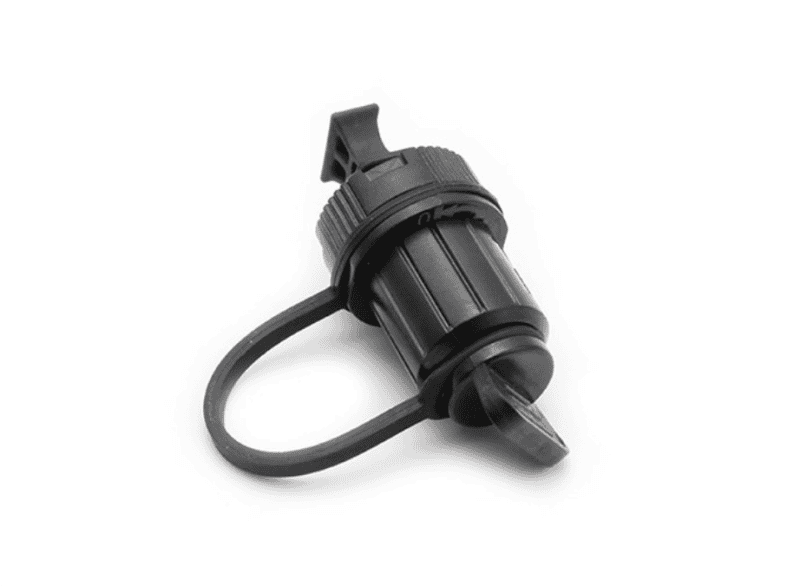

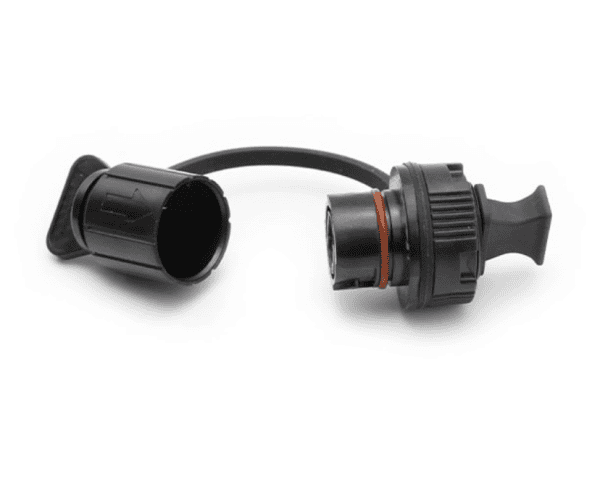

The HOLIGHT Waterproof Mini MPO Adapter provides a compact and robust interface between male and female Mini IP MPO connectors in outdoor optical networks.
Engineered for FTTA, MST, and harsh-environment applications, it guarantees stable alignment and superior optical performance under water, dust, and temperature stress.
Manufactured with precision-molded PC+ABS and PBT materials, this adapter offers excellent mechanical strength, repeatable mating cycles, and long service life even across different connector brands.
It’s the ideal interconnect choice for field-deployable optical assemblies requiring IP67/68 protection and high reliability.

1. When This Product Is the Right Choice

• Typically selected for FTTA / MST / outdoor pre-terminated builds where the interconnect point must maintain sealed performance under water, dust, and humidity exposure.
• Commonly used when the field team needs rapid mate/de-mate using a push-pull locking interface in confined outdoor spaces where tool access is limited.
• Usually appropriate when the project is standardized on Mini IP MPO form factor and needs a compact adapter for 12F or 24F trunk assemblies.
• Typically suitable when long-term maintainability requires repeatable alignment across repeated mating cycles in harsh environments, and the deployment expects routine re-entry at outdoor handoff points.

2. When This Product May NOT Be Suitable

• May not be suitable when the site is built around standard indoor MPO adapter ecosystems and the connector geometry/interface is not Mini IP MPO, as mating form-factor mismatch commonly drives rework.
• Commonly unsuitable if the installation cannot control seal integrity (gasket seating, contamination on sealing surfaces, incomplete locking), since most field failures are caused by sealing/handling rather than optical loss.
• May not be appropriate where the mounting method (e.g., flanged vs flangeless) is not aligned with the host panel/box structure, which commonly leads to poor mechanical retention or misalignment under vibration.
• Typically not suitable when the deployment requires a different keying / polarity convention than the specified keyway scheme, as polarity mistakes can cause commissioning delays in multi-fiber links.

3. Common Selection Mistakes to Avoid

• Selecting by fiber count only (12F/24F) without validating the connector family (Mini IP MPO vs standard MPO/MTP), which commonly results in non-mating assemblies.
• Treating “IP68” as automatic success without enforcing field practices for clean sealing surfaces and full lock engagement, which commonly causes intermittent faults after weather cycles.
• Mixing flanged/flangeless choices across the same project without a consistent mechanical standard, which typically complicates spares management and onsite replacement.

1. IP67/68 Outdoor Protection
   Built for FTTA and MST environments, the sealed structure resists rain, dust, and humidity for uninterrupted performance.
2. Push-Pull Locking Design
   Allows rapid installation and secure mating even in confined outdoor spaces without tools.
3. Precision Optical Alignment
   High-tolerance sleeve and core alignment ensure minimal insertion loss and repeatable connection quality.
4. Cross-Brand Compatibility
   Supports standard MPO/MTP connector geometry; compatible across multiple vendor interfaces.
5. Dual-Fiber-Count Options
   Available for 12-fiber and 24-fiber assemblies, meeting varying network densities.
6. Ruggedized Housing Materials
   PC+ABS and PEI components provide excellent impact resistance and dimensional stability under temperature change.
7. Flame-Retardant and Eco-Safe
   UL94-V0 and RoHS-certified materials guarantee compliance with global safety and environmental standards.

• FTTA & 5G Base Stations – Links RRUs and BBU units with sealed optical reliability.
• Outdoor MST Boxes – Connects pre-terminated trunk cables for rapid field deployment.
• Harsh Industrial Sites – Protects against moisture, dust, and oil contamination.
• Temporary Outdoor Networks – Ideal for rapid-deployment communication systems.
• Transportation & Rail Systems – Ensures vibration-resistant fiber interconnection.

1. What is the difference between Mini MPO and standard MPO adapters?
   Mini MPO provides a more compact body and higher protection level, optimized for outdoor and FTTA applications.
2. Can it be used with both SM and MM connectors?
   Yes, the adapter supports single-mode and multimode connectors interchangeably.
3. What is the protection rating?
   IP67/IP68 ensures resistance to water immersion, dust, and outdoor exposure.
4. How many fibers does it support?
   It supports both 12-fiber and 24-fiber configurations.
5. Is it compatible with MTP connectors?
   Yes. It complies with MPO/MTP geometry under IEC 61754-4 and TIA-568C.3 standards.
6. What installation options are available?
   Flanged and flangeless models can be selected based on mounting requirements.
7. What materials are used in construction?
   The body is PEI, screws are PBT & PC+ABS, and gaskets use silica gel for sealing.
8. What’s the typical insertion loss and repeatability?
   ≤ 0.3 dB insertion loss and ≤ 0.1 dB variation after 500 mating cycles.
