DESCRIPTION

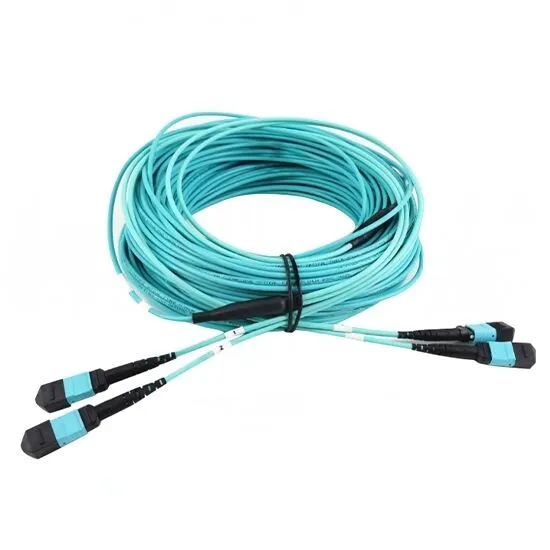

The 24 Fiber OM3 2 x MTP/MPO-12 Fiber Optic Trunk Cable is a high-density, low-loss solution designed for high-performance fiber optic networks. Featuring OM3 multimode fiber, this cable ensures superior data transmission speeds and bandwidth, making it ideal for data centers, telecommunications networks, and FTTH/FTTP applications. With its pre-terminated MTP/MPO-12 connectors, the cable reduces installation time, ensuring quick deployment in large-scale network environments. This trunk cable provides optimal performance for high-speed network connections, supporting 10GbE, 40GbE, and 100GbE Ethernet networks.
| Specification | Details |
| Fiber Count | 24 Fibers |
| Connector Type | 2 x MTP/MPO-12 |
| Cable Type | OM3 Multimode Fiber |
| Insertion Loss | MPO/MTP: ≤0.7dB (Standard), ≤0.35dB (Elite) |
| Return Loss | ≥20 dB (typical MPO/MTP multimode) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Application Type | Data Centers, Telecom, FTTH/FTTP, High-Speed Networks |
| Operating Temperature | -20°C to +70°C |
| Bandwidth | 2000 MHz·km (OM3) |
| Maximum Distance (10GbE) | Up to 300m (typical OM3 link, depends on transceiver and channel design) |
| Compliance | RoHS, TIA/EIA-568-C.3, IEC 60794-2-50 |
| Fiber Diameter | 50 µm (core) |
Options: Polarity Type A/B/C and Male/Female MPO can be supplied to match your cassettes and transceivers.
- MTP/MPO-12 Connectivity: The 2 x MTP/MPO-12 connector configuration enables high-density, efficient cable management, ideal for environments that demand large amounts of fiber connections.
- OM3 Multimode Fiber: This cable utilizes OM3 fiber, which is engineered for high-speed, high-bandwidth applications. OM3 fibers offer better performance for distances up to 300 meters for 10GbE applications and beyond.
- Low Insertion Loss: With a focus on reducing signal attenuation, the cable maintains high performance over longer distances, ensuring stable connections and efficient data transfer.
- Pre-Terminated for Ease of Use: Pre-terminated with MTP/MPO-12 connectors, the cable eliminates the need for field terminations, making it easy to install and connect quickly, reducing network setup time.
- Durable LSZH Jacket: The cable jacket is made from LSZH material, which is non-toxic and emits low smoke in case of fire, ensuring a safer working environment.
- Versatility for High-Speed Networks: Capable of supporting 40G and 100G Ethernet speeds, this trunk cable is ideal for backbone infrastructure and high-speed data transfers in mission-critical networks.

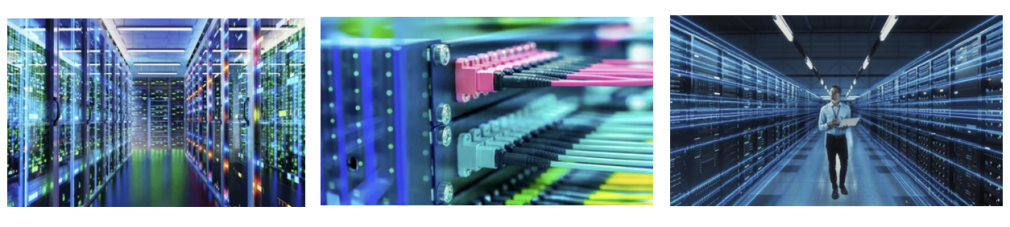

- Data Centers: In data center environments, this cable is used to connect servers, storage, and networking devices over high-bandwidth, long-distance links. It’s designed to support high-density fiber optic installations while maintaining excellent signal quality over extended distances.
- Telecommunications Networks: In telecom infrastructure, this trunk cable connects telecom equipment, ensuring high data throughput and low-latency connections. Its versatility and compatibility make it suitable for backbone connections in telecommunication hubs and offices.
- FTTH/FTTP Applications: The cable is used for delivering high-speed fiber optic internet services directly to homes and businesses, providing seamless broadband experiences and enhancing network speeds.
- High-Speed Backbone Connections: Designed for backbone installations, the 24-fiber configuration supports rapid data flow across the network, making it ideal for interconnecting switches, routers, and servers in enterprise environments.
- 40G/100G Ethernet: This trunk cable can easily handle 40G and 100G Ethernet speeds, making it a perfect solution for next-generation networks requiring superior speed, capacity, and reliability.
Q1: What is a 24F OM3 MTP/MPO trunk cable?
It is a high-density fiber optic trunk cable with 24 OM3 multimode fibers, terminated with two 12-fiber MTP/MPO connectors, designed for fast deployment in data centers and high-speed networks.
Q2: Why use OM3 fiber for this trunk cable?
OM3 multimode fiber supports 10G Ethernet up to 300 m and 40G/100G up to 100 m, offering cost-effective high-bandwidth connections for short-reach applications.
Q3: What is the difference between MTP and MPO connectors?
MTP is a premium version of MPO, providing tighter ferrule tolerances, lower insertion loss, and higher durability, making it ideal for high-density and high-speed applications.
Q4: How is polarity managed in MTP/MPO trunk cables?
Polarity can be Type A, B, or C depending on network design. Correct polarity ensures proper fiber mapping for parallel transmission in data center environments.
Q5: What is the typical optical performance?
High-quality cables offer ≤0.35 dB insertion loss per connector and ≥20 dB return loss, meeting IEC and TIA standards for high-speed multimode transmission.
Q6: Can this trunk cable be customized?
Yes. Options include fiber type (OM3/OM4/OM5), cable length, jacket type (LSZH, OFNR, OFNP), connector gender (male/female), and polarity.
Q7: Where is this cable commonly used?
It is mainly deployed in hyperscale data centers, enterprise networks, SANs, and high-density backbone connections requiring reliable, low-loss links.
Q8: What is the typical delivery time?
Standard lengths are usually in stock for quick shipping. Customized configurations generally require 3–7 working days.
