DESCRIPTION

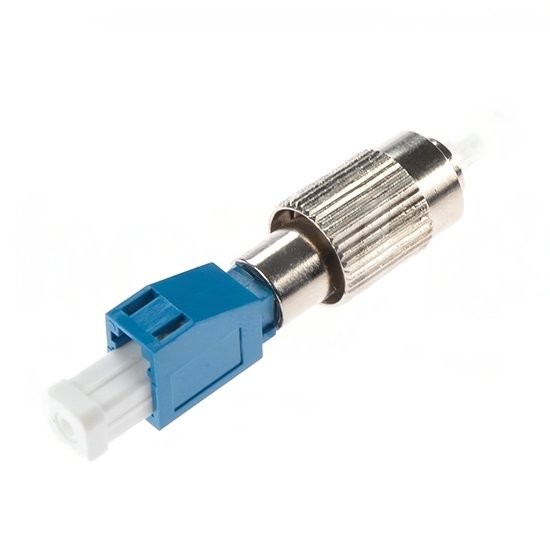

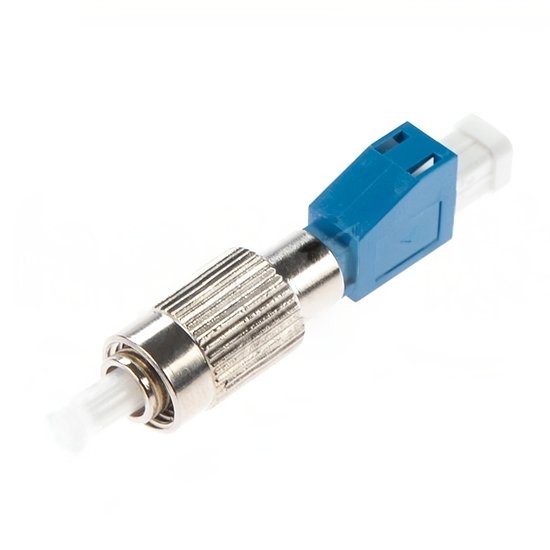

The LC Female to FC Male Single Mode Simplex Hybrid Fiber Adapter is specially designed to connect LC and FC interfaces within single mode networks. With its zirconia ceramic sleeve, this adapter ensures accurate fiber core alignment for optimal signal transmission. Its simplex configuration makes it suitable for one-core single mode links, commonly used in long-haul, high-speed, and high-reliability optical networks.
Durable construction allows this hybrid adapter to be used in telecom, FTTH, test equipment, and data communication networks.
FEATURE DETAILS
- LC to FC Hybrid Connection: No need for extra patch cords.
- Simplex Configuration: Designed for one-core single mode fiber.
- High Reliability: Precision ceramic sleeve for stable connections.
- Compact and Lightweight: Easy integration into patch panels or equipment.
- Cost-Effective Solution: Reduces complexity in fiber systems.
PRODUCT SPECIFICATIONS
| Item | Value |
| Connector Type | LC Female to FC Male |
| Fiber Mode | Single mode & Multimode |
| Fiber Counts | Simplex |
| Durability | ≤0.1dB |
| Insertion Loss | ≤0.2dB |
| Working Temperature | -25~70℃ |
| Sleeve | Ceramic |
APPLICATION DETAILS
- Telecom Operators: Connecting LC and FC interfaces in backbone networks.
- FTTH/FTTx Deployments: Cost-effective customer-end hybrid connectivity.
- Optical Test Equipment: Hybrid adapter use in measurement setups.
- Data Communication Networks: Integration of different connector types.
- Enterprise Infrastructure: Connecting FC-based devices to LC networks.
FAQ
- Can this adapter connect UPC and APC connectors?
Yes, it is available in UPC (blue/metallic) and APC (green) versions.
- Is it designed for simplex or duplex use?
This model is simplex (1 core). For duplex versions, different models are available.
- Where is this adapter commonly used?
It is widely used in telecom systems, FTTH projects, data centers, and optical test equipment.
- How many mating cycles does it support?
It supports over 1000 mating cycles without significant performance degradation.
- Is this adapter suitable for outdoor use?
Yes, with proper housing in an enclosure, it can be used in outdoor applications thanks to its wide operating temperature range.
